Vehicle Exploded View - MOTO-GUZZI V9 850 Bobber 850 E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

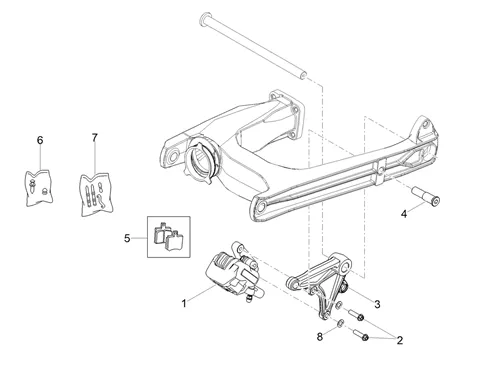

Système frein abs : 06.04 PINCE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/979/V9_Bobber_850_E5_ABS_2021_(EMEA)_06.04.png)
1 |
2B000525 - PINZA FRENO POST More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
2 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 2 |
|||||||||
|
3 |
2B003357-PLATE BRACKET More informationQuantity required : 1 |
|||||||||
|
4 |
GU31544181-PIVOT More informationQuantity required : 1 |
|||||||||
|
5 |
BRAKE PADS - "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7 RACER 2015> AR, V9 2016> AR (PAIR) -2R000248 More informationQuantity required : 1 |
|||||||||
|
6 |
GU31659281-PURGE + CAPUCHON More informationQuantity required : 1 |
|||||||||
|
7 |
GU31659181-KIT PLAQUETTES More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
8 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 2 |
|||||||||
