Vehicle Exploded View - MOTO-GUZZI V9 850 Bobber 2016 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

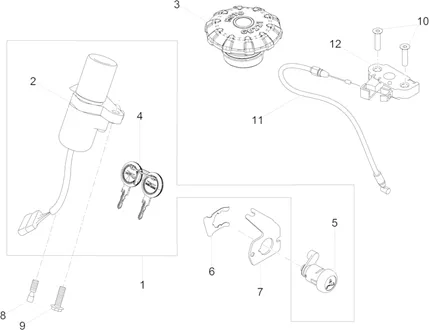

Carrosserie : 02.170 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/756/V9_Bobber_2016_(EMEA)_02.170.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/4/9/img/140949.jpg)
1 |
IGNITION SWITCH/LOCK COMPLETE OEM PIAGGIO V9 MOTO GUZZI E4 2016-2017-2B002940 More informationQuantity required : 1 |
||||||
2 |
2D000299-SWITCH A CLEF More informationQuantity required : 1 |
||||||
|
3 |
2B002043-CAP TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/1/8/7/img/98187.jpg)
4 |
EBAUCHE DE CLE OEM PIAGGIO MOTO-GUZZI 1400 CALIFORNIA 2012 >, ELDORADO 2015 >, AUDACE 2015 >, MGX-21 2016 >, 850 V9 2016 >-2D000004 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/2/6/6/img/100266.jpg)
5 |
977527-SERRATURA BAULETTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/3/img/71463.jpg)
6 |
AGRAFE A FORK DE MAINTIENT DE LOCK DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A LA RANGE APRILIA ET MOTO-GUZZI-AP8121420 More informationQuantity required : 1 |
||||||
|
7 |
978415-PIASTRINA BRACKET CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/6/img/71866.jpg)
8 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X15) OEM PIAGGIO COMMON A LA RANGE-AP8150349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
9 |
SCREW BTR (8X16) OEM PIAGGIO COMMON A LA RANGE-319165 More informationQuantity required : 1 |
||||||
|
10 |
AP8702101-SCREW FHC More informationQuantity required : 2 |
||||||
|
11 |
2B002936-TRANSMISSION More informationQuantity required : 1 |
||||||
|
12 |
AP8102913-PL. FIX. SEAT PASS. More informationQuantity required : 1 |
