Vehicle Exploded View - MOTO-GUZZI V85 850 TT Travel Pack E4 ABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

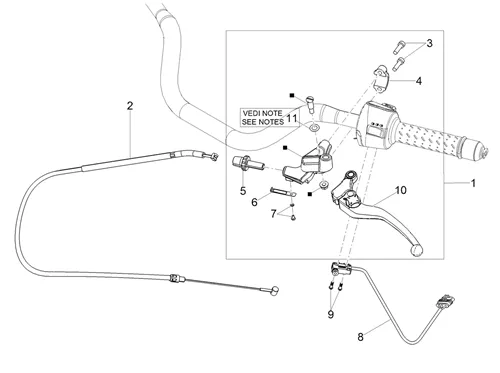

Guidon - commandes : 07.03 COMMANDE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/964/V85_TT_Travel_Pack_E4_ABS_2020_(EMEA)_07.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/3/3/img/156933.jpg)
1 |
GRIP CLUTCH OEM MOTO GUZZI V85 2019 >-2B004720 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/3/4/img/156934.jpg)
2 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO MOTO GUZZI V85TT 2019 >-2B005851 More informationQuantity required : 1 |
||||||
3 |
2B006308-SCREW More informationQuantity required : 2 |
||||||
|
4 |
856050-CAVALIER More informationQuantity required : 1 |
||||||
|
5 |
2B004721-REGLAGE More informationQuantity required : 1 |
||||||
|
6 |
2B006307-SPRING More informationQuantity required : 1 |
||||||
|
7 |
2B006306-SCREW More informationQuantity required : 1 |
||||||
|
8 |
2D000497-INTERRUPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/5/0/img/68250.jpg)
9 |
SCREW CRUCIFORME (2X12) OEM PIAGGIO COMMON A LA RANGE-654174 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/7/3/5/img/172735.jpg)
10 |
LEVER CLUTCH OEM PIAGGIO V85TT MOTO GUZZI 2020 >-2B007401 More informationQuantity required : 1 |
||||||
|
11 |
2B007402-SPACER More informationQuantity required : 1 |
