Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Special Stone 750 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

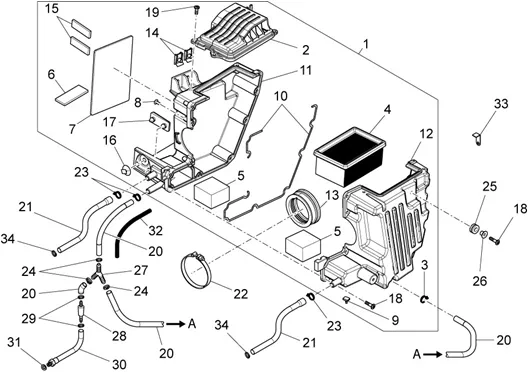

Chassis : 33.22 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/539/V7_Special_Stone_750_2012-2013_33.22.PNG)
1 |
887842-AIR BOX ASSEMBLY More informationQuantity required : 1 |
||||||
|
2 |
887843-COVER FILTRO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/0/img/72130.jpg)
3 |
HOSE CLAMP HOSE (9X11. 9) OEM PIAGGIO COMMON A LA RANGE-AP8201358 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/4/img/71244.jpg)
4 |
ELEMENT/MOUSSE DE AIR FILTER MOTO OEM PIAGGIO MOTO-GUZZI 750 NEVADA 2012 >, V7 2017 >, V9 2016 >-AP8104924 More informationQuantity required : 1 |
||||||
|
5 |
AP8104525-FILTER BLOW-BY More informationQuantity required : 2 |
||||||
|
6 |
883127-GOMMA ADESIVA 5MM More informationQuantity required : 1 |
||||||
|
7 |
AP8144553-GOMMA INF. APPOGGIO BATTERIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/9/img/71419.JPG)
8 |
CAP DE VIDANGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120876 More informationQuantity required : 2 |
||||||
|
9 |
AP8120455-SILENT BLOCK STAND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/8/img/71408.jpg)
10 |
GASKET COVER DE AIR FILTER (D3) OEM PIAGGIO COMMON A LA RANGE-AP8120615 More informationQuantity required : 2 |
||||||
|
11 |
887844-GUSCIO DX CASSA FILTRO More informationQuantity required : 1 |
||||||
|
12 |
887845-GUSCIO SX CASSA FILTRO More informationQuantity required : 1 |
||||||
|
13 |
887815-MANICOTTO DI ASPIRAZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
15 |
890517-GASKET DUCT G More informationQuantity required : 2 |
||||||
|
16 |
890760-BRACKET More informationQuantity required : 1 |
||||||
|
17 |
AP8144729-TAMPONE DI APPOGGIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
18 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
19 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 4 |
||||||
|
20 |
AP8120772-HOSE RENIFLARD OIL More informationQuantity required : 3 |
||||||
|
21 |
B063214-TUBAZIONE BLOW-BY More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/1/5/img/132615.jpg)
22 |
CLAMP 61/65. 5 OEM PIAGGIO COMMON A LA RANGE-GU93305061 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/9/img/71199.jpg)
23 |
CLAMP HOSE (D 15. 8) OEM PIAGGIO COMMON A LA RANGE-AP8102766 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/8/img/71198.jpg)
24 |
CLAMP CLIC (13. 5X6) OEM PIAGGIO COMMON A LA RANGE-AP8102765 More informationQuantity required : 3 |
||||||
|
25 |
GU91551010-RUBBER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
26 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 2 |
||||||
|
27 |
2B000045-RACCORDO A Y More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/6/img/71246.jpg)
28 |
VALVE DE RETENUE BLOW-BY OEM APRILIA CAPONORD-AP8104996 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/3/3/img/130133_20251023145539.jpg)
29 |
CLAMP CLIC (12. 5X8) OEM PIAGGIO COMMON A LA RANGE-GU28157950 More informationQuantity required : 2 |
||||||
|
30 |
B063213-TUBAZIONE RECUPERO SFIATO OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/5/6/img/132256.jpg)
31 |
GASKET FIBRE (8. 25X15X1) RENIFLARD BOX A AIR OEM MOTO GUZZI-GU90714082 More informationQuantity required : 1 |
||||||
|
32 |
GU00823923140-GUAINA NERA D16 S0, 4 VETR More informationQuantity required : 1 |
||||||
|
33 |
GU31112965-PLATE More informationQuantity required : 1 |
||||||
|
34 |
HOSE CLAMP HOSE (9X11. 9) OEM PIAGGIO COMMON A LA RANGE-AP8201358 More informationQuantity required : 2 |
