Vehicle Exploded View - MOTO-GUZZI V7 750 Special 750 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

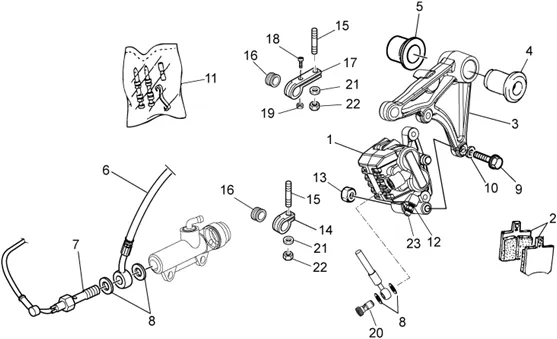

Chassis : 33.27 PINCE FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/540/V7_Special_750_2014_33.27.PNG)
1 |
887449-PINZA BRAKE POST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/7/2/img/71672.jpg)
2 |
BRAKE PADS OEM PIAGGIO MOTO-GUZZI 750 V7 AR/APRILIA 125-250 SPORT-CITY AV, 400-500 SCARABEO AV, 850 NA-MANA AR-AP8133798 More informationQuantity required : 1 |
||||||
|
3 |
887431-PLATE BRACKET PINZA POST More informationQuantity required : 1 |
||||||
|
4 |
GU31634281-BUSH More informationQuantity required : 1 |
||||||
|
5 |
GU32634160-SPACER More informationQuantity required : 1 |
||||||
|
6 |
B063750-TUBO BRAKE POST More informationQuantity required : 1 |
||||||
|
7 |
883192-INTERUTTORE STOP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
8 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
9 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.jpg)
10 |
WASHER SPRING (8. 4X15X1. 5) OEM PIAGGIO COMMON A LA RANGE-658837 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/7/3/img/71673.jpg)
11 |
KIT SPINDLE ET SPRING BRAKE CALIPER OEM PIAGGIO APRILIA 125-250-300 SPORT-CITY/MOTO-GUZZI 750 V7, NEVADA-AP8133799 More informationQuantity required : 1 |
||||||
|
12 |
AP8133800-SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
13 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 2 |
||||||
|
14 |
GU03658430-CLAMP More informationQuantity required : 1 |
||||||
|
15 |
GU96451316-SCREW WITHOUT HEAD More informationQuantity required : 1 |
||||||
|
16 |
GU03658201-BUSH More informationQuantity required : 2 |
||||||
|
17 |
GU03658330-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
18 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
19 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
20 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
|
21 |
GU95008306-WASHER 6, 4X12X1, 2 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
22 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
|
23 |
AP8213575-CAPPUCCIO SPURGO ARIA More informationQuantity required : 1 |
