Vehicle Exploded View - MOTO-GUZZI V7 750 Racer 750 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

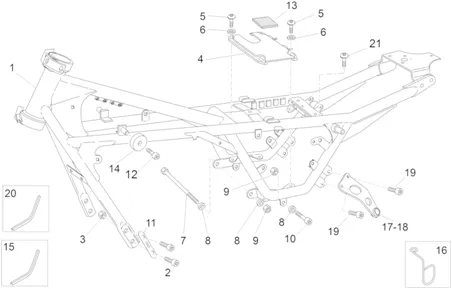

Chassis : 33.01 CHASSIS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/537/V7_Racer_750_2014_33.01.PNG)
1 |
B063251-TELAIO CON PI ROSSO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
2 |
SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150195 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/1/0/img/132510.jpg)
3 |
NUT (M10X1, 5) OEM PIAGGIO COMMON A LA RANGE-GU92630510 More informationQuantity required : 4 |
||||||
|
4 |
B063287-PLATE UNIONE TELAIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/5/img/67255.jpg)
5 |
SCREW BTR HEAD BOMBEE (8X16) OEM PIAGGIO COMMON A LA RANGE-582428 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
6 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 4 |
||||||
|
7 |
GU98110199-PIVOT M10X205 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/2/img/132682.jpg)
8 |
WASHER PLATE (10, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-GU95008210 More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/8/6/img/132486.jpg)
9 |
GU92606210 - ECROU M10X1,5 More informationQuantity required : 2 |
||||||
|
10 |
GU98680555-SCREW M10X55 More informationQuantity required : 2 |
||||||
|
11 |
886645-PIASTRINA CULLA TELAIO More informationQuantity required : 2 |
||||||
|
12 |
GU98682414-SCREW M8X14 More informationQuantity required : 2 |
||||||
|
13 |
GU01103860-SPUGNA More informationQuantity required : 1 |
||||||
|
14 |
GU66103415-RUBBER More informationQuantity required : 2 |
||||||
|
15 |
AP8144606-GUARNIZIONE IN GOMMA 10X5 More informationQuantity required : 1 |
||||||
|
16 |
AP8221172-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
17 |
2B000843-LAMIERA BRACKET SILENZIATORE DX More informationQuantity required : 1 |
||||||
|
18 |
2B000844-LAMIERA BRACKET SILEZIATORE SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/8/0/img/73580.jpg)
19 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-GU98692420 More informationQuantity required : 4 |
||||||
|
20 |
AP8220590-GASKET More informationQuantity required : 1 |
||||||
|
21 |
GU03468100-SCREW IX M8X1, 25 More informationQuantity required : 1 |
