Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Racer 750 2012-2013 USA 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

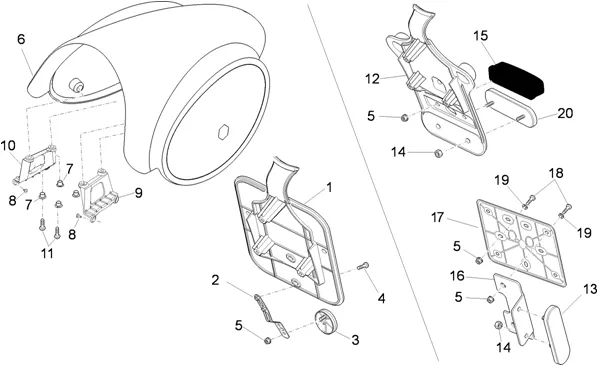

Chassis : 33.16 CARROSSERIE ARRIÉRE II- PORTE-PLAQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/536/V7_Racer_750_2012-2013_USA_2013-2014_33.16.PNG)
1 |
978949-PORTATARGA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/2/img/71702.jpg)
2 |
BRACKET DE CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8134448 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/5/img/72325.jpg)
3 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE-AP8224164 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/6/1/img/132961.jpg)
4 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-GU98230510 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
5 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 1 |
||||||
|
6 |
898280-COPRISELLA More informationQuantity required : 1 |
||||||
|
6 |
B06315100Y02-(*) COPRISELLA C/DEC.'12 * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/0/img/71500.jpg)
7 |
BUSH EN T (6. 5X8. 6X9) OEM PIAGGIO COMMON A LA RANGE-AP8121929 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
8 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 4 |
||||||
|
9 |
886712-STAFFA SX More informationQuantity required : 1 |
||||||
|
10 |
886713-STAFFA DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
11 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 4 |
||||||
|
12 |
883470 - PORTATARGA USA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
13 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718 More informationQuantity required : 2 |
||||||
|
14 |
GU92630204-NUT More informationQuantity required : 6 |
||||||
|
15 |
883480-FANALE TARGA USA More informationQuantity required : 1 |
||||||
|
16 |
GU32781910-BRACKET CATADIOPTRE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/1/img/71801.jpg)
17 |
BRACKET DE PLATE IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET MAXI SCOOTER APRILIA-AP8149034 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
18 |
SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/4/img/71844.jpg)
19 |
WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150248 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/4/img/73444.jpg)
20 |
CATADIOPTRE AMBRE DE FORK OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-GU05781630 More informationQuantity required : 1 |
