Vehicle Exploded View - MOTO-GUZZI V7 750 III Stone Night Pack 750 E4 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

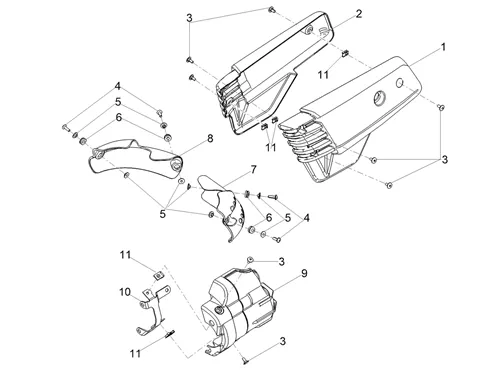

Carrosserie : 02.100 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/857/V7_III_Stone_Night_Pack_750_E4_2019_(EMEA)_02.100.png)
1 |
2H003134000XN6-BODY PANEL G More informationQuantity required : 1 |
||||||
|
1 |
2B003499-BODY PANEL G More informationQuantity required : 1 |
||||||
|
2 |
2H003133000XN6-BODY PANEL D More informationQuantity required : 1 |
||||||
|
2 |
2B003498-BODY PANEL D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
3 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/8/8/img/42388.jpg)
4 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A A LA RANGE-895915 More informationQuantity required : 4 |
||||||
|
5 |
843213-WASHER More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/7/7/7/img/49777.jpg)
6 |
RUBBER DE CARROSSERIE OEM MOTO GUZZI V7-AP8144593 More informationQuantity required : 4 |
||||||
|
7 |
2B003451-COVER More informationQuantity required : 1 |
||||||
|
8 |
2B003450-COVER More informationQuantity required : 1 |
||||||
|
9 |
2B006168-COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/4/8/img/140948.jpg)
10 |
BRACKET DE COVER STARTER MOTOR OEM PIAGGIO MOTO-GUZZI 750 V7 2018 > 900 V9 2018 >-2B002937 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
11 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 8 |
