Vehicle Exploded View - MOTO-GUZZI V65 650 Florida 650 1986-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

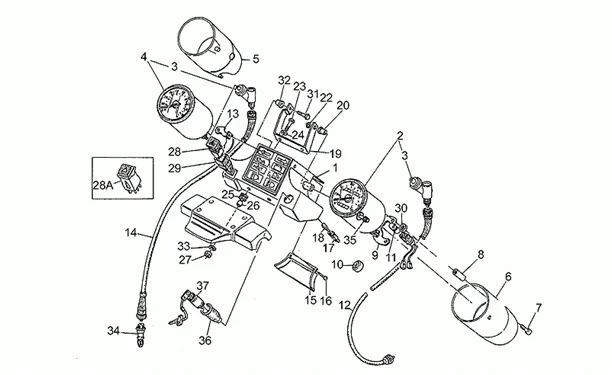

Chassis : 33.05 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/530/V65_Florida_650_1986-1992_33.05.PNG)
1 |
Boîtier tableau de bord cpl. |
||||||
|
2 |
GU23761570 - COMPTEUR KM More informationQuantity required : 1 |
||||||
|
2 |
GU23762470 - COMPTEUR MILES More informationQuantity required : 1 |
||||||
|
3 |
GU23768310 - RENVOI 60° More informationQuantity required : 2 |
||||||
|
4 |
GU23767270 - COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
5 |
GU23761910 - BOUCHON More informationQuantity required : 1 |
||||||
|
6 |
GU23762010 - BOUCHON More informationQuantity required : 1 |
||||||
|
7 |
GU98622214-SCREW More informationQuantity required : 2 |
||||||
|
8 |
GU23765110 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
9 |
GU23764910 - PLAQUE More informationQuantity required : 1 |
||||||
|
10 |
RONDELLE DE CALAGE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
11 |
AMPOULE/LAMPE 12V 3W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-294131 More informationQuantity required : 2 |
||||||
|
12 |
GU27760410 - TRANSMISSION TACHYMETRE More informationQuantity required : 1 |
||||||
|
13 |
GU23766510-PLATE More informationQuantity required : 1 |
||||||
|
14 |
GU23768110-TRANSMISSION COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
15 |
Couvercle inférieure |
||||||
|
16 |
GU99210210-SCREW TARAUD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/7/0/5/img/129705.jpg)
17 |
BULB HOLDER - DASHBOARD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU19768680 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
18 |
AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634 More informationQuantity required : 8 |
||||||
|
19 |
GU23764110 - CAVALIER More informationQuantity required : 1 |
||||||
|
20 |
GU23766911-SPACER More informationQuantity required : 1 |
||||||
|
22 |
GU95004205-WASHER More informationQuantity required : 2 |
||||||
|
23 |
GU98054320-SCREW M6X20 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
24 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
25 |
RUBBER GUIDE FIL (8X18) OEM PIAGGIO COMMON A LA RANGE-GU91551086 More informationQuantity required : 2 |
||||||
|
26 |
GU91180607 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
27 |
GU92630106-NUT M6X1 More informationQuantity required : 2 |
||||||
|
28 |
|
||||||
|
28 |
Turn indicator switch |
||||||
|
29 |
GU35755780 - CAPUCHON More informationQuantity required : 1 |
||||||
|
30 |
GU93110060-RUBBER More informationQuantity required : 4 |
||||||
|
31 |
GU98054230 - VIS More informationQuantity required : 2 |
||||||
|
32 |
GU23766910-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
33 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 2 |
||||||
|
34 |
GU14769200 - RENVOI Z=14 More informationQuantity required : 1 |
||||||
|
35 |
GU19762810 - POUSSOIR RAZ More informationQuantity required : 1 |
||||||
|
36 |
GU19741336 - CAPUCHON More informationQuantity required : 1 |
||||||
|
37 |
GU31735360 - BLOC DEMARREUR More informationQuantity required : 1 |
