Vehicle Exploded View - MOTO-GUZZI V50 500 PA 500 1992-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

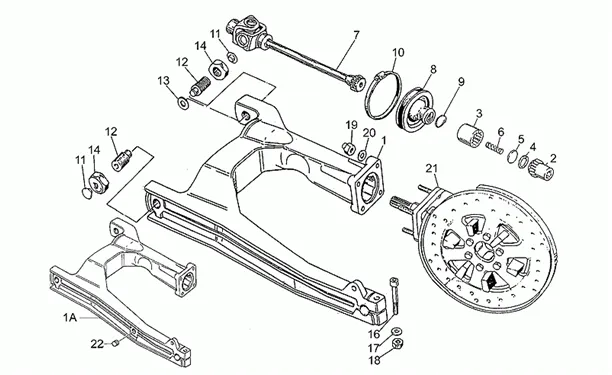

Chassis : 33.11 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/528/V50_PA_500_1992-2001_33.11.PNG)
1 |
GU31540281 - FOURCHE AR.GRIS More informationQuantity required : 1 |
||||||
|
1 |
|
||||||
|
2 |
GU31327783-SLEEVE * More informationQuantity required : 1 |
||||||
|
3 |
GU19328801-SLEEVE * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/3/5/img/132135.jpg)
4 |
CLIPS/CIRCLIPS TRANSMISSION REAR MOTO GUZZI V7 2020 <-GU90272023 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/8/1/img/129581.jpg)
5 |
DISC INTERCALAIRE DE TRANSMISSION OEM MOTO GUZZI NEVADA, STRADA, V7 2020 <-GU19327601 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/4/3/img/132643.jpg)
6 |
SPRING DE TRANSMISSION OEM MOTO GUZZI V35, V50, V65, V7, NEVADA, STRADA 2020 <-GU94321099 More informationQuantity required : 1 |
||||||
|
7 |
GU23328081-GASKET * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/8/9/8/img/129898.jpg)
8 |
SOUFFLET DE CARDAN OEM PIAGGIO MOTO-GUZZI 750 V7, BREVA, NEVADA, V35, V50, V65-GU23548080 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/8/9/9/img/129899.jpg)
9 |
CLIPS/SPRING DE TRANSMISSION OEM MOTO GUZZI V35, V50, V65, V7, NEVADA, STRADA 2020 <-GU23548180 More informationQuantity required : 1 |
||||||
|
10 |
GU93305074 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/1/img/132571.jpg)
11 |
CAP/COVER OEM MOTO GUZZI COMMON A LA RANGE-GU93180105 More informationQuantity required : 2 |
||||||
|
12 |
GU19547000-PIVOT More informationQuantity required : 2 |
||||||
|
13 |
GU35214300-CALE More informationQuantity required : 1 |
||||||
|
14 |
GU14547800 - ECROU More informationQuantity required : 2 |
||||||
|
16 |
GU98620545-SCREW More informationQuantity required : 1 |
||||||
|
17 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 1 |
||||||
|
18 |
GU92602210 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
19 |
NUT BORGNE (D8) OEM PIAGGIO COMMON A LA RANGE-GU92781081 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
20 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
|
21 |
CARTER DE PONT |
||||||
|
21 |
Boîte transm.cpl.grise |
||||||
|
22 |
GU93180216-RUBBER More informationQuantity required : 1 |
