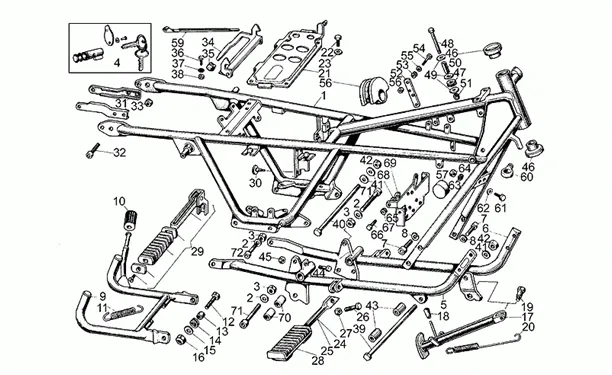

Vehicle Exploded View - MOTO-GUZZI V35 350 V50 Acc Elettronica 350-500 1977-1980

	P2R reference	132657
	Maker reference	GU95004210

GU95004210 - RONDELLE 10,2X18X2

	P2R reference	132466
	Maker reference	GU92602210

GU92602210 - ECROU

	P2R reference	165125
	Maker reference	GU19782520

GU19782520 - SERRURE

	P2R reference	132746
	Maker reference	GU95120105

GU95120105-WASHER ELASTIC

	P2R reference	129630
	Maker reference	GU19430305

GU19430305 - BEQUILLE CENTRALE

	P2R reference	129167
	Maker reference	GU13432640

RUBBER DE PEDALE STAND OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU13432640

	P2R reference	129136
	Maker reference	GU12434001

GU12434001 - RESSORT RAPPEL BEQ.

	P2R reference	132897
	Maker reference	GU98054530

GU98054530-SCREW

	P2R reference	132341
	Maker reference	GU91181114

GU91181114-SPACER

	P2R reference	132647
	Maker reference	GU94322215

SPRING DE CULBUTEUR OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU94322215

	P2R reference	110062
	Maker reference	00304045

WASHER PLATE (10. 5X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-0030404

	P2R reference	132510
	Maker reference	GU92630510

NUT (M10X1, 5) OEM PIAGGIO COMMON A LA RANGE-GU92630510

	P2R reference
	Maker reference	GU19432000

BRAS LATERAL

	P2R reference	164646
	Maker reference	GU19433000

GU19433000 - CAOUTCHOUC DE FERM.

	P2R reference	165108
	Maker reference	GU99105129

GU99105129 - PIVOT

	P2R reference	165109
	Maker reference	GU19434000

GU19434000 - RESSORT

	P2R reference
	Maker reference	GU19418200

PLAQUE BATTERIE

	P2R reference	65645
	Maker reference	0311175

031117-BOLT S03111700

	P2R reference	132656
	Maker reference	GU95004208

GU95004208 - RONDELLE

	P2R reference	165110
	Maker reference	GU39440700

GU39440700 - TUBE

	P2R reference	165111
	Maker reference	GU39441800

GU39441800 - TUBE

	P2R reference	132465
	Maker reference	GU92602208

GU92602208 - ECROU M8X1,25

	P2R reference	165112
	Maker reference	GU39443200

GU39443200 - REPOSE-PIED AV

	P2R reference	129680
	Maker reference	GU19705900

BUFFER STAND LATERLE OEM MOTO GUZZI COMMON A LA RANGE-GU19705900

	P2R reference
	Maker reference	GU98822418

VIS

	P2R reference	133231
	Maker reference	GU98822420

GU98822420-SCREW

	P2R reference	132509
	Maker reference	GU92630508

GU92630508 - ECROU

	P2R reference	129637
	Maker reference	GU19462050

GU19462050 - CROCHET SELLE

	P2R reference	132887
	Maker reference	GU98054312

GU98054312-SCREW

	P2R reference
	Maker reference	GU95021106

Rondelle évent.

	P2R reference	132464
	Maker reference	GU92602206

GU92602206-NUT

	P2R reference	131916
	Maker reference	GU53429500

GU53429500-PIVOT M10X250

	P2R reference	132941
	Maker reference	GU98110199

GU98110199-PIVOT M10X205

	P2R reference	132657
	Maker reference	GU95004210

GU95004210 - RONDELLE 10,2X18X2

	P2R reference	132466
	Maker reference	GU92602210

GU92602210 - ECROU

	P2R reference	129455
	Maker reference	GU19017000

GU19017000-BUSH

	P2R reference	165107
	Maker reference	GU98054322

GU98054322 - VIS

	P2R reference	132464
	Maker reference	GU92602206

GU92602206-NUT

	P2R reference	165126
	Maker reference	GU39515000

GU39515000 - BOUCHON

	P2R reference	132361
	Maker reference	GU91551086

RUBBER GUIDE FIL (8X18) OEM PIAGGIO COMMON A LA RANGE-GU91551086

	P2R reference
	Maker reference	GU98052350

VIS

	P2R reference	132712
	Maker reference	GU95100139

GU95100139-WASHER

	P2R reference
	Maker reference	GU91180725

ENTRETOISE

	P2R reference	73546
	Maker reference	GU92630106

GU92630106-NUT M6X1

	P2R reference	132361
	Maker reference	GU91551086

RUBBER GUIDE FIL (8X18) OEM PIAGGIO COMMON A LA RANGE-GU91551086

	P2R reference	165088
	Maker reference	GU98052220

GU98052220 - VIS

	P2R reference	132703
	Maker reference	GU95100059

WASHER PLATE (5. 25X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-GU95100059

	P2R reference	132500
	Maker reference	GU92630105

NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-GU92630105

	P2R reference	131886
	Maker reference	GU39103400

BUFFER DE FRAME OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU39103400

	P2R reference	165127
	Maker reference	GU14107100

GU14107100 - TAMPON

	P2R reference	129265
	Maker reference	GU14609650

GU14609650-CLAMP 3, 6X20, 6

	P2R reference	165128
	Maker reference	GU19436500

GU19436500 - OEILLET

	P2R reference	133231
	Maker reference	GU98822420

GU98822420-SCREW

	P2R reference	132652
	Maker reference	GU95000208

GU95000208-WASHER

	P2R reference	132693
	Maker reference	GU95021108

GU95021108-WASHER ELASTIC

	P2R reference	132465
	Maker reference	GU92602208

GU92602208 - ECROU M8X1,25

	P2R reference	165088
	Maker reference	GU98052220

GU98052220 - VIS

	P2R reference	132361
	Maker reference	GU91551086

RUBBER GUIDE FIL (8X18) OEM PIAGGIO COMMON A LA RANGE-GU91551086

	P2R reference	132703
	Maker reference	GU95100059

WASHER PLATE (5. 25X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-GU95100059

	P2R reference	132500
	Maker reference	GU92630105

NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-GU92630105

	P2R reference	165104
	Maker reference	GU18252050

GU18252050 - BAGUE 19 MM

	P2R reference	132881
	Maker reference	GU98052565

GU98052565 - VIS

	P2R reference	132879
	Maker reference	GU98052555

GU98052555-SCREW
