Vehicle Exploded View - MOTO-GUZZI V35 350 II 350 1981-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

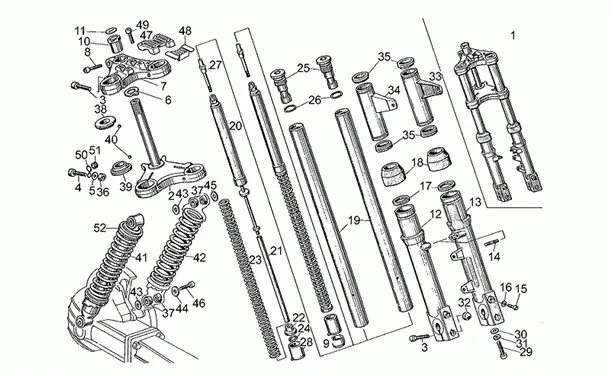

Chassis : 33.12 SUSPENSION AVANT/ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/526/V35_II_350_1981-1985_33.12.PNG)
1 |
|
||||||
|
2 |
T DE FOURCHE |
||||||
|
3 |
GU98620540 - VIS M10X40 More informationQuantity required : 4 |
||||||
|
4 |
GU98620555 - VIS More informationQuantity required : 2 |
||||||
|
5 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 2 |
||||||
|
6 |
|
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/9/img/133159.jpg)
8 |
GU98680435 - VIS TCEI M8X35 More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
|
10 |
GU14516600 - DOUILLE More informationQuantity required : 1 |
||||||
|
11 |
GU17517700 - PETIT COUVERCLE More informationQuantity required : 1 |
||||||
|
12 |
|
||||||
|
13 |
|
||||||
|
14 |
GU96508021 - VIS SANS TETE More informationQuantity required : 4 |
||||||
|
15 |
GU98682312 - VIS TCEI M6X12 More informationQuantity required : 2 |
||||||
|
16 |
GU95100116 - RONDELLE More informationQuantity required : 2 |
||||||
|
17 |
GU90403144 - JOINT SPI More informationQuantity required : 2 |
||||||
|
18 |
CACHE POUSSIERE |
||||||
|
19 |
TUBE DE FOURCHE |
||||||
|
20 |
Amortisseur fourche |
||||||
|
21 |
|
||||||
|
22 |
Soucoupe porte-ressort |
||||||
|
23 |
GU19526600 - RESSORT More informationQuantity required : 2 |
||||||
|
24 |
GU90271012 - BAGUE SEEGER More informationQuantity required : 2 |
||||||
|
25 |
BOUCHON BRAS FOURCHE |
||||||
|
26 |
|
||||||
|
27 |
GU19504800 - VIS More informationQuantity required : 2 |
||||||
|
28 |
EMBOUT |
||||||
|
29 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
30 |
O'RING GASKET FOR OIL PIPE "PIAGGIO GENUINE PART" MOTO-GUZZI V9 2016> -GU12154200 More informationQuantity required : 2 |
||||||
|
31 |
GU95004208 - RONDELLE More informationQuantity required : 2 |
||||||
|
32 |
GU92781100 - ECROU More informationQuantity required : 2 |
||||||
|
33 |
SUPPORT DE PHARE |
||||||
|
33 |
SUPPORT DE PHARE |
||||||
|
33 |
SUPPORT DE PHARE |
||||||
|
34 |
|
||||||
|
34 |
|
||||||
|
34 |
|
||||||
|
35 |
GU39492701 - JOINT TORIQUE More informationQuantity required : 4 |
||||||
|
36 |
Entretoise |
||||||
|
37 |
Bague |
||||||
|
38 |
GU61514940 - BOUCHON More informationQuantity required : 1 |
||||||
|
39 |
GU61515240 - PISTE DIRECTION More informationQuantity required : 1 |
||||||
|
40 |
GU92295704 - BILLE More informationQuantity required : 44 |
||||||
|
41 |
|
||||||
|
42 |
|
||||||
|
43 |
GU95004215 - RONDELLE PLATE More informationQuantity required : 4 |
||||||
|
44 |
GU95100255 - RONDELLE More informationQuantity required : 2 |
||||||
|
45 |
GU95000208 - RONDELLE More informationQuantity required : 2 |
||||||
|
46 |
GU98822416 - VIS More informationQuantity required : 4 |
||||||
|
47 |
COLLIER |
||||||
|
48 |
BOUCHON |
||||||
|
49 |
GU98830430 - VIS More informationQuantity required : 4 |
||||||
|
50 |
|
||||||
|
51 |
GU91551120 - BAGUE More informationQuantity required : 1 |
||||||
|
52 |
|
