Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello E5 ABS 2022-2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

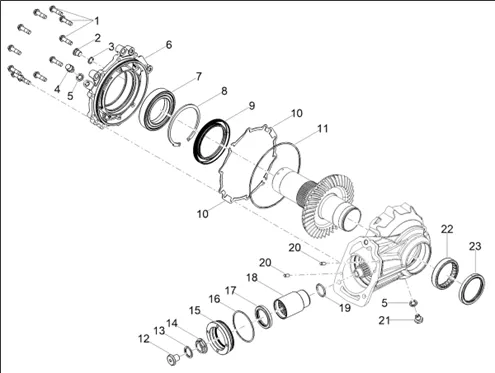

Moteur : 03.35 LA TRANSMISSION ARRIÈRE / COMPOSANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1308/V100_Mandello_E5_ABS_2022-2024_(EMEA)_03.35.png)
1 |
2B009252-HEX HEAD FLANGED M8X20 PRE-IMPREGNATED More informationQuantity required : 11 |
||||||
|
2 |
GU05351230-CAP OIL M12X1, 5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/8/img/111438.jpg)
3 |
GASKET ETANCHEITE CUIVRE (15. 90X12. 30X1. 20) COMMON A LA RANGE APE/MOTO GUZZI-224566 More informationQuantity required : 1 |
||||||
|
4 |
2B008491-BREATHER ASSEMBLY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/6/9/0/img/101690.jpg)
5 |
GASKET (10X18X1. 5) CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI BREVA, GRISO, NEVADA, NORGE, STELVIO, V-7, V-9, V-11, SPORT, CALIFORNIA, AUDACE, ELDORADO, BELAGIO-GU01528930 More informationQuantity required : 2 |
||||||
|
6 |
2B008880-COVER BOX CPL More informationQuantity required : 1 |
||||||
|
7 |
2B008581-FOUR-POINT CONTACT BEARING More informationQuantity required : 1 |
||||||
|
8 |
2B008583-SEEGER CIRCLIP J100 X 3V More informationQuantity required : 1 |
||||||
|
9 |
2B009242-SEALING RING More informationQuantity required : 1 |
||||||
|
10 |
CM259503-SHOULDER RING S = 0. 9MM More informationQuantity required : 2 |
||||||
|
10 |
CM259505-SHOULDER RING S = 1MM More informationQuantity required : 2 |
||||||
|
10 |
CM259507-SHOULDER RING S = 1. 1MM More informationQuantity required : 2 |
||||||
|
10 |
CM259509-SHOULDER RING S = 1. 2MM More informationQuantity required : 2 |
||||||
|
10 |
CM259501-SHOULDER RING S = 0. 8MM More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/5/3/img/132253.jpg)
11 |
O-RING (158, 42X2, 62) DE TRANSMISSION REAR OEM MOTO GUZZI COMMON A LA RANGE-GU90706958 More informationQuantity required : 1 |
||||||
|
12 |
2B010535-PINION FIXING CUP M14X1 More informationQuantity required : 1 |
||||||
|
13 |
GU19355309-CALE 1, 9 MM More informationQuantity required : 1 |
||||||
|
14 |
2B008598-HEXAGON NUT WITH FLANGE More informationQuantity required : 1 |
||||||
|
15 |
2B010893-RING NUT More informationQuantity required : 1 |
||||||
|
16 |
2B008587-SEAL RING (O-RING) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/7/2/2/img/140722.jpg)
17 |
2B000404-BUSH D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
18 |
2B008588-GASKET More informationQuantity required : 1 |
||||||
|
19 |
2B009001-SEALING RING OR 26X3 More informationQuantity required : 1 |
||||||
|
20 |
B064107-CYLINDRICAL PIN More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
21 |
CAP VIDANGE OIL ENGINE/BV/PONT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU31003766 More informationQuantity required : 1 |
||||||
|
22 |
2B008578-DRAWN CUP NEEDLE ROLLER BEARING More informationQuantity required : 1 |
||||||
|
23 |
2B008595-SEALING RING More informationQuantity required : 1 |
