Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello E5 ABS 2022-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

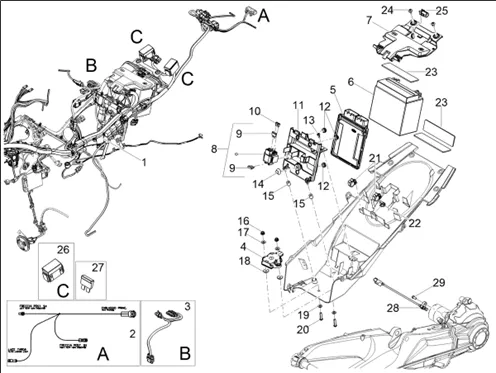

Dispositifs électriques : 11.03 CIRCUIT ELECTRIQUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1188/V100_Mandello_E5_ABS_2022-2023_(EMEA)_11.03.png)
1 |
2D000755-MAIN HARNESS More informationQuantity required : 1 |
|||||||||
|
2 |
2D000761-REAR LAMP WIRE HARNESS More informationQuantity required : 2 |
|||||||||
|
3 |
2D000757-FUEL PUMP WIRING HARNESS More informationQuantity required : 1 |
|||||||||
|
4 |
2D000713-6 AXIS INERTIAL MEASUREMENT UNIT More informationQuantity required : 1 |
|||||||||
|
5 |
CM3018174 - ELECTRONIC CONTROL UNIT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/0/7/img/67807.jpg)
6 |
BATTERY 12V 12AH YTX14-BS OEM PIAGGIO WITHOUT SERVICE SUPPLIED WITH PACK ACIDE (LG151XL87XH147)-638733 More informationQuantity required : 1 |
|||||||||
|
7 |
2B010020-BATTERY COVER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/7/img/146197.jpg)
8 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300-400-500 CC/APRILIA 900 SHIVER, DORSODURO, 1000 RSV-4, TUONO V4 -1D001697R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
9 |
BLADE FUSE STANDARD 30A OEM PIAGGIO COMMON A LA RANGE-CM225730 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/6/img/67226.jpg)
10 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-581596 More informationQuantity required : 2 |
|||||||||
|
11 |
2B010019-ECU HOUSING More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/8/img/56838.jpg)
12 |
RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8220186 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
13 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 1 |
|||||||||
|
14 |
890760-BRACKET More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/4/img/71414.jpg)
15 |
BUFFER/RUBBER OEM PIAGGIO 50 GILERA SMT, RCR 2018 >/DERBI SENDA 2018 >-AP8120712 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
16 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/6/img/71776.jpg)
17 |
RUBBER GUIDE FIL OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8144662 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
18 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
19 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/5/6/img/50956.jpg)
20 |
SCREW BTR HEAD BOMBEE (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152128 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/8/img/72918.jpg)
21 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 2 |
|||||||||
|
22 |
1D000129-GASKET More informationQuantity required : 1 |
|||||||||
|
23 |
AP8144552-GOMMA LAT. APPOGGIO BATTERIA More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
24 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 2 |
|||||||||
|
25 |
COVER CONNECTEUR OEM PIAGGIO COMMON A LA RANGE-1D002384 More informationQuantity required : 3 |
|||||||||
|
26 |
894603-BO? TE A FUSIBLES More informationQuantity required : 2 |
|||||||||
|
27 |
CM225605-FUSIBLE More informationQuantity required : 4 |
|||||||||
|
27 |
CM225603-FUSIBILE 3A VIOLA More informationQuantity required : 2 |
|||||||||
|
27 |
CM225610-FUSIBLE More informationQuantity required : 3 |
|||||||||
|
27 |
CM225607-FUSIBLE More informationQuantity required : 7 |
|||||||||
|
27 |
CM225615-FUSIBLE More informationQuantity required : 2 |
|||||||||
|
27 |
CM225620-FUSIBLE More informationQuantity required : 2 |
|||||||||
|
28 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/2/img/71922.jpg)
29 |
SCREW BTR (6X14) OEM PIAGGIO COMMON A LA RANGE-AP8152156 More informationQuantity required : 1 |
|||||||||
