Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

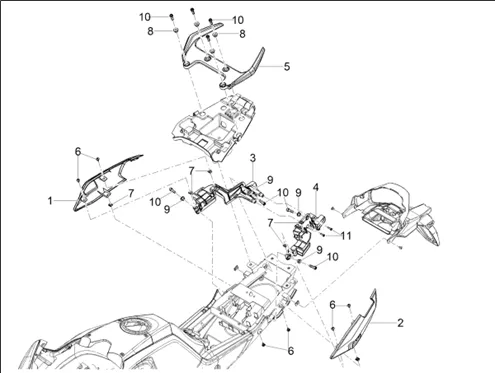

Carrosserie : 02.14 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1310/V100_Mandello_E5_ABS_2024_(EMEA)_02.14.png)
1 |
2B009872000D23-RH REAR COVER More informationQuantity required : 1 |
||||||
|
1 |
2B009872000G59-RH REAR COVER More informationQuantity required : 1 |
||||||
|
1 |
2B009872-RH REAR COVER More informationQuantity required : 1 |
||||||
|
2 |
2B009873000D23-LH REAR COVER More informationQuantity required : 1 |
||||||
|
2 |
2B009873-LH REAR COVER More informationQuantity required : 1 |
||||||
|
2 |
2B009873000G59-LH REAR COVER More informationQuantity required : 1 |
||||||
|
3 |
2B012833-BRACKET RIGHT More informationQuantity required : 1 |
||||||
|
4 |
2B012834-BRACKET LEFT More informationQuantity required : 1 |
||||||
|
5 |
2B009876-PASSENGER HANDLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
6 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
7 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 6 |
||||||
|
8 |
2B010707-HANDLE BUSH More informationQuantity required : 4 |
||||||
|
9 |
2B010312-FLANGED BUSHING DI 8, 2 DE 18 DM 11, 5 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/7/8/2/img/140782.JPG)
10 |
2B002171-SCREW More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
11 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 2 |
