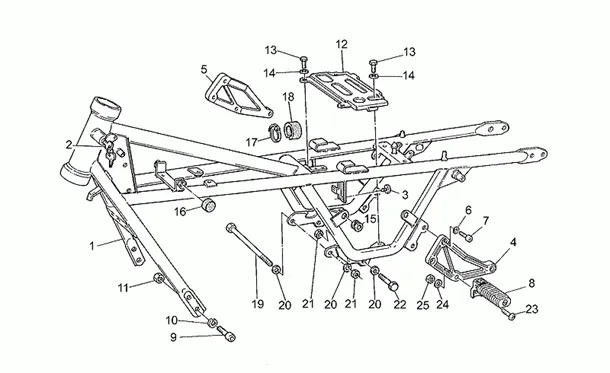

Chassis : 33.20 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/916/V_35_Florida_350_1986-1990_33.20.png)
1 |
GU23400110 - CADRE More informationQuantity required : 1 |
||||||
|
2 |
GU19782520 - SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
3 |
BUFFER STAND LATERLE OEM MOTO GUZZI COMMON A LA RANGE-GU19705900 More informationQuantity required : 4 |
||||||
|
4 |
GU23446010-PLATE More informationQuantity required : 1 |
||||||
|
5 |
GU23443510 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
6 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
|
7 |
GU98622416 - VIS More informationQuantity required : 4 |
||||||
|
8 |
GU23442310 - REPOSE-PIEDS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/2/img/133142.jpg)
9 |
SCREW BTR (10X25) OEM PIAGGIO COMMON A LA RANGE-GU98622525 More informationQuantity required : 4 |
||||||
|
10 |
GU95120105-WASHER ELASTIC More informationQuantity required : 4 |
||||||
|
11 |
GU92602210 - ECROU More informationQuantity required : 4 |
||||||
|
12 |
GU27418210 - PLAQUE More informationQuantity required : 1 |
||||||
|
13 |
031117-BOLT S03111700 More informationQuantity required : 4 |
||||||
|
14 |
GU95004208 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
15 |
RUBBER GUIDE FIL (8X18) OEM PIAGGIO COMMON A LA RANGE-GU91551086 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/8/6/img/131886.jpg)
16 |
BUFFER DE FRAME OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU39103400 More informationQuantity required : 2 |
||||||
|
17 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 2 |
||||||
|
18 |
GU28109040 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
19 |
GU98110199-PIVOT M10X205 More informationQuantity required : 1 |
||||||
|
20 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 4 |
||||||
|
21 |
GU92602210 - ECROU More informationQuantity required : 3 |
||||||
|
22 |
GU98052555-SCREW More informationQuantity required : 2 |
||||||
|
23 |
GU98231025 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/8/0/img/129180.jpg)
24 |
WASHER PLATE (10. 5X21X1) OEM MOTO GUZZI COMMON A LA RANGE-GU14018400 More informationQuantity required : 2 |
||||||
|
25 |
GU92601210 - ECROU More informationQuantity required : 2 |
