Vehicle Exploded View - MOTO-GUZZI V10 1000 V 10 Centauro 1000 1997-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

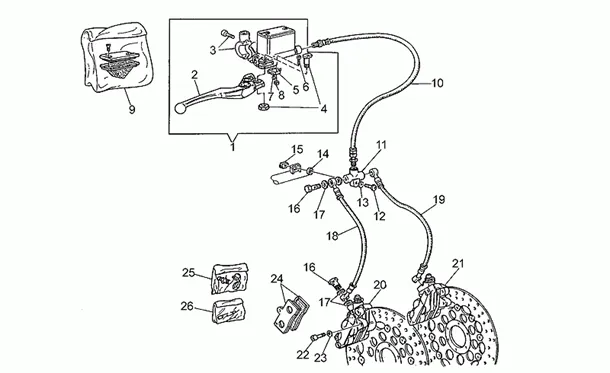

Chassis : 33.10 SYS.FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/920/V_10_Centauro_1000_1997-1999_33.10.png)
1 |
GU02660100 - POMPA FRENO ANT. More informationQuantity required : 1 |
||||||
|
2 |
GU02605600 - LEVA FRENO More informationQuantity required : 1 |
||||||
|
3 |
AP8113203-CAVALIER LEVER BRAKE More informationQuantity required : 1 |
||||||
|
4 |
GU27604815-PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/6/5/img/130965.jpg)
5 |
CONTACTEUR BRAKE FRONT OEM MOTO GUZZI COMMON A LA RANGE 2005 <-GU30749860 More informationQuantity required : 1 |
||||||
|
6 |
GU98200214 - VIS More informationQuantity required : 2 |
||||||
|
7 |
GU92295708 - BILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/5/7/img/132457.JPG)
8 |
NUT (1X4) SERRAGE BRAKE MASTER CYLINDER AV OEM PIAGGIO MOTO-GUZZI-GU92601002 More informationQuantity required : 1 |
||||||
|
9 |
GU27661115 - COUVERCLE POMPE More informationQuantity required : 1 |
||||||
|
10 |
GU02657100-TUBO BRAKE More informationQuantity required : 1 |
||||||
|
10 |
GU02657110-TUBO BRAKE More informationQuantity required : 1 |
||||||
|
11 |
GU31656860-REPARTITEUR More informationQuantity required : 1 |
||||||
|
12 |
GU98230635 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
13 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 1 |
||||||
|
14 |
GU91180710 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
15 |
GU92660601-NUT EN CAGE More informationQuantity required : 1 |
||||||
|
16 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
17 |
WASHER HOSE BRAKE (10X1. 5X1) OEM MOTO GUZZI COMMON A LA RANGE-GU25656100 More informationQuantity required : 8 |
||||||
|
18 |
GU30658800 - TUYAU HUILE AV D. More informationQuantity required : 1 |
||||||
|
19 |
GU30658801-HOSE OIL AV G. More informationQuantity required : 1 |
||||||
|
20 |
GU30652302 - MACHOIRE FREIN AV D OR More informationQuantity required : 1 |
||||||
|
21 |
GU30652202 - MACHOIRE FREIN AV G OR More informationQuantity required : 1 |
||||||
|
22 |
GU98602525-SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
23 |
WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220 More informationQuantity required : 4 |
||||||
|
24 |
GU30654602 - PLAQUETTES-PAIRE More informationQuantity required : 2 |
||||||
|
25 |
GU30659200-PURGE + CAPUCHON More informationQuantity required : 2 |
||||||
|
26 |
GU30659102-KIT PLAQUETTES More informationQuantity required : 2 |
