Vehicle Exploded View - PIAGGIO TYPHOON 50 Serie Speciale 2007-2008 PIAGGIO

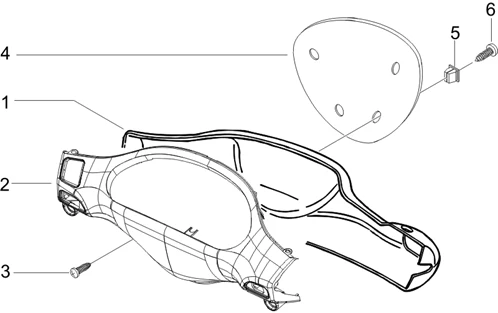

Guidon/direction : 03.01 COUVERTURES GUIDON
Couvertures guidon
Search
CM06110600GP - CACHE GUIDON

1
P2R reference P2R reference 95482
Maker reference Maker reference CM06110600GP

CM06110600GP - CACHE GUIDON

More information

Quantity required : 1

FRONT HANDLEBAR COVER "PIAGGIO GENUINE PART" 50 NRG 2007> RAW TO BE PAINT -1B005975

1
P2R reference P2R reference 151203
Maker reference Maker reference 1B005975

FRONT HANDLEBAR COVER "PIAGGIO GENUINE PART" 50 NRG 2007> RAW TO BE PAINT -1B005975

More information

Quantity required : 1

298148000C - CACHE DIRECTION INT

2
P2R reference P2R reference 77970
Maker reference Maker reference 298148000C

298148000C - CACHE DIRECTION INT

More information

Quantity required : 1

SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958

3
P2R reference P2R reference 66068
Maker reference Maker reference 267958

SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958

More information

Quantity required : 5

WIND SHIELD "PIAGGIO GENUINE PART" NRG EXTREME -581093

4
P2R reference P2R reference 81507
Maker reference Maker reference 581093

WIND SHIELD "PIAGGIO GENUINE PART" NRG EXTREME -581093

More information

Quantity required : 1

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190

5
P2R reference P2R reference 65832
Maker reference Maker reference 199190

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190

More information

Quantity required : 4

SCREW - 4,2x13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349

6
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349

More information

Quantity required : 4
