Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 Factory 1100 E5 Superpole ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

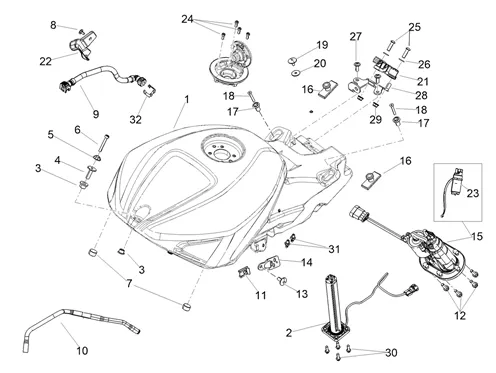

Réservoir : 09.01 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/986/Tuono_V4_Factory_1100_E5_Superpole_ABS_2021_(EMEA)_09.01.png)
1 |
2H004601000XN2 - FUEL TANK More informationQuantity required : 1 |
||||||
|
2 |
2D000634 - FUEL LEVEL GAUGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/1/img/71151.jpg)
3 |
RUBBER MOUNT/RUBBER EN T OEM PIAGGIO COMMON A LA RANGE-AP8101372 More informationQuantity required : 2 |
||||||
|
4 |
2B006465 BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/2/img/71902.jpg)
5 |
WASHER SPECIALE OEM PIAGGIO COMMON A LA RANGE MOTO-AP8150536 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/5/img/71875.jpg)
6 |
SCREW BTR (6X45) OEM PIAGGIO COMMON A LA RANGE-AP8150403 More informationQuantity required : 1 |
||||||
|
7 |
2B007824 FUEL TANK ADHESIVE BUMPER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
8 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 3 |
||||||
|
9 |
2B007450 COMPLETE FUEL HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/9/4/img/42394.jpg)
10 |
HOSE PURGE TANK OEM APRILIA 1000-1100 RSV4 2009 >-895959 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
11 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
12 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/3/img/71903.jpg)
13 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8150538 More informationQuantity required : 1 |
||||||
|
14 |
858886-BRACKET SIDE PANEL G More informationQuantity required : 1 |
||||||
|
15 |
B043925 - POMPE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/2/3/img/46623.jpg)
16 |
RUBBER TANK OEM PIAGGIO COMMON A LA RANGE-AP8120663 More informationQuantity required : 2 |
||||||
|
17 |
893273-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/3/img/67143.jpg)
18 |
SCREW HANDLEBAR END OEM PIAGGIO COMMON A TOUTE LA RANGE-576836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/2/0/1/6/img/52016.jpg)
19 |
SCREW OF MOUNTING DE FUEL TANK OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4, 750-900-1200 DORSODURO, 1200 CAPONORD-AP8161127 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/7/img/71847.jpg)
20 |
WASHER PLATE (5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150255 More informationQuantity required : 1 |
||||||
|
21 |
2D000517-DETECTEUR More informationQuantity required : 1 |
||||||
|
22 |
B044550-BRACKET More informationQuantity required : 1 |
||||||
|
23 |
899068-DETECTEUR More informationQuantity required : 1 |
||||||
|
24 |
B043864-SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
25 |
SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/4/img/132664.JPG)
26 |
WASHER PLATE (6, 4X13X1, 5) OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-GU95005306 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/4/7/img/132947.jpg)
27 |
SCREW FLANGE BTR (6X12) OEM PIAGGIO COMMON A LA RANGE-GU98210612 More informationQuantity required : 2 |
||||||
|
28 |
2B002985-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
29 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
30 |
SCREW FLANGE TH (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004560 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/8/0/2/img/37802.jpg)
31 |
INSERT FUEL TANK OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-2B001203 More informationQuantity required : 2 |
||||||
|
32 |
2B007735 FUEL HOSE SECURE LOCK More informationQuantity required : 1 |
