Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 Factory 1100 E5+ 2025 (Emea)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

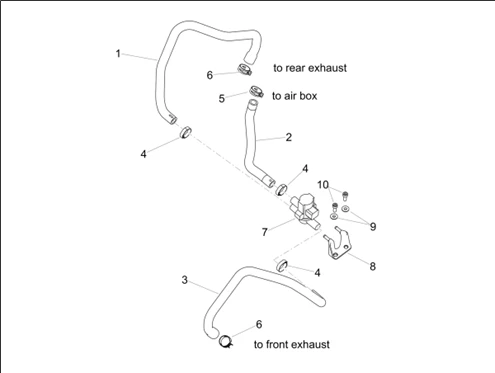

Moteur : 03.32 AIR SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1277/Tuono_V4_Factory_1100_E5_2025_Emea_03.32.png)
1 |
2B013475 - AIR PIPE More informationQuantity required : 1 |
||||||
|
2 |
2B011261 - AIRBOX, AIR INDUCTION SYSTEM PIPE More informationQuantity required : 1 |
||||||
|
3 |
2B013476 - FRONT AIR INDUCTION SYSTEM PIPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
4 |
CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/7/img/72897.jpg)
5 |
CLAMP (15MM) SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM002916 More informationQuantity required : 1 |
||||||
|
6 |
CM225401-CLAMP SERR. TUBE More informationQuantity required : 2 |
||||||
|
7 |
857181-VALVE AIR More informationQuantity required : 1 |
||||||
|
8 |
858727-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
9 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
10 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137 More informationQuantity required : 2 |
