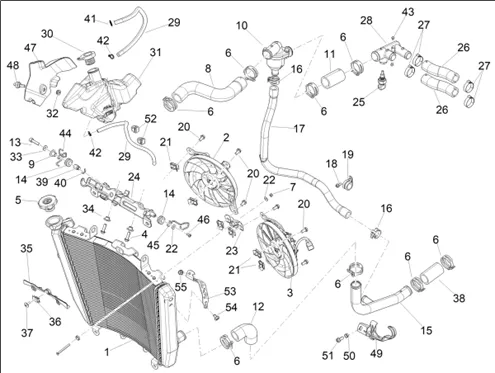

Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 Factory 1100 E5+ 2025 (Emea)

	P2R reference	217584
	Maker reference	2B012807

2B012807 - RADIATEUR AVEC BOUCHON

	P2R reference	217585
	Maker reference	2B012542

2B012542-RIGHT ELECTRIC FAN ASSEMBLY

	P2R reference	217586
	Maker reference	2B012541

2B012541-LEFT ELECTRIC FAN ASSEMBLY

	P2R reference	71942
	Maker reference	AP8152279

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

	P2R reference	42094
	Maker reference	893954

CAP DE RADIATOR OEM APRILIA 1000-1100 RSV4 2009 >-893954

	P2R reference	109014
	Maker reference	CM269609

CM269609-CLAMP SERR. TUBE

	P2R reference	71839
	Maker reference	AP8150204

NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204

	P2R reference	108700
	Maker reference	2B002204

2B002204-HOSE RADIATOR

	P2R reference	72294
	Maker reference	AP8221023

BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023

	P2R reference	40070
	Maker reference	856279

THERMOSTAT OEM APRILIA 1000-1100 RSV-4, TUONO V4 2009 >-856279

	P2R reference	108701
	Maker reference	2B002207

2B002207-SLEEVE

	P2R reference	49583
	Maker reference	AP8144033

HOSE COOLING THERMOSTHAT-PUMP OEM APRILIA 1000-1100 RSV2, RSV4-AP8144033

	P2R reference	50830
	Maker reference	AP8150053

SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150053

	P2R reference	71384
	Maker reference	AP8120030

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

	P2R reference	176261
	Maker reference	2B008321

2B008321-WATER PUMP-RADIATOR MANIFOLD

	P2R reference	109012
	Maker reference	CM269603

CM269603-CLAMP

	P2R reference	108702
	Maker reference	2B002208

2B002208-TUY. THERMOSTAT-MOT.

	P2R reference	71938
	Maker reference	AP8152272

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272

	P2R reference	41945
	Maker reference	893224

893224-CLAMP

	P2R reference	71941
	Maker reference	AP8152277

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	71804
	Maker reference	AP8150011

WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150011

	P2R reference	217587
	Maker reference	2B012868

2B012868 - FIXING ELECTRIC FAN SUPPORT

	P2R reference	42819
	Maker reference	897775

BRACKET RADIATOR OEM APRILIA 1100/1000 RSV4, TUONO-2B005580

	P2R reference	213286
	Maker reference	1A023021R

1A023021R-BULBE DE TEMPÃ - RATURE DA € - WATER

	P2R reference	108699
	Maker reference	2B002203

2B002203-HOSE ENGINE-COLLEC.

	P2R reference	97314
	Maker reference	AP9100456

CLAMP CLIC (26X8) OEM PIAGGIO COMMON A LA RANGE-AP9100456

	P2R reference	40119
	Maker reference	856543

MANIFOLD DE COOLING OEM APRILIA 1000-1100 RSV4 2009 >-856543

	P2R reference	70868
	Maker reference	896544

HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544

	P2R reference	203755
	Maker reference	2B010567

CAP DU VASE EXPANSION OEM APRILIA MOTO-2B010567

	P2R reference	176103
	Maker reference	2B008085

2B008085 COOLANT TANK

	P2R reference	71958
	Maker reference	AP8152299

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

	P2R reference	71927
	Maker reference	AP8152181

WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181

	P2R reference	46929
	Maker reference	AP8121728

BUSH EN T (6. 30X10X7. 50) OEM APRILIA COMMON A LA RANGE-AP8121728

	P2R reference	217588
	Maker reference	2B012803

2B012803 - PATTE

	P2R reference	71174
	Maker reference	AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

	P2R reference	71894
	Maker reference	AP8150500

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

	P2R reference	49845
	Maker reference	AP8144720

SLEEVE HOSE COOLING OEM APRILIA 1000-1100 RSV-AP8144720

	P2R reference	42888
	Maker reference	898047

898047-INSERT

	P2R reference	71404
	Maker reference	AP8120573

CIRCLIPS OF REST FOOT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120573

	P2R reference	71155
	Maker reference	AP8101595

CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595

	P2R reference	71176
	Maker reference	AP8102378

AP8102378-CLAMP

	P2R reference	72286
	Maker reference	AP8220488

RUBBER/BUFFER CHAMPIGNON OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220488

	P2R reference	217589
	Maker reference	2B014236

2B014236-GUIDE-CABLE

	P2R reference	217590
	Maker reference	2B013019

2B013019 - PASSE-CABLE

	P2R reference	71887
	Maker reference	AP8150444

SCREW CRUCIFORME (3. 9X10) TARAUD STAINLESS STEEL FOR PLASTIQUE OEM PIAGGIO COMMON A LA RANGE-AP8150444

	P2R reference	217591
	Maker reference	2B013445

2B013445 - COOLING SYSTEM EXPANSION TANK COVER

	P2R reference	217592
	Maker reference	2B013447

2B013447 - M6 SPECIAL STUD

	P2R reference	217593
	Maker reference	2B013471

2B013471 - SUPPORT TUYAUX EAU

	P2R reference	132278
	Maker reference	GU91120606

GU91120606-BUSH 6, 8X8, 8X5, 8

	P2R reference	151683
	Maker reference	AP8152278

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

	P2R reference	72140
	Maker reference	AP8201727

GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8201727

	P2R reference	217594
	Maker reference	2B012812

2B012812 - PURGE VALVE BRACKET

	P2R reference	98902
	Maker reference	884043

884043-SCREW TBEI FL M6X12 PREIMPREGNATA

	P2R reference	71958
	Maker reference	AP8152299

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299
