Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 Factory 1100 E4 Superpole ABS 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

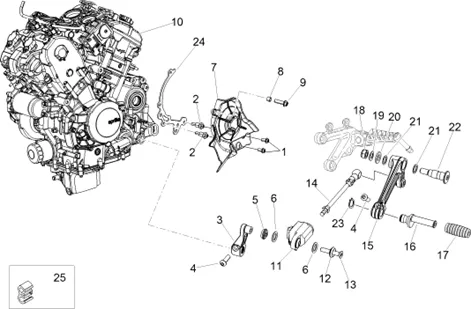

Moteur : 29.37 MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1224/Tuono_V4_Factory_1100_E4_Superpole_ABS_2019_(EMEA)_29.37.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
1 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
|||||||||
2 |
2B001932-SPACER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/5/7/2/img/39572.jpg)
3 |
LEVER BOX OF VITESSES OEM PIAGGIO APRILIA DORSODURO, SHIVER, CAPONORD, RSV-4, TUONO-852480 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
4 |
SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470 More informationQuantity required : 2 |
|||||||||
|
5 |
2B002562-BUSH More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/5/img/56835.jpg)
6 |
O-RING (115) OEM PIAGGIO COMMON A LA RANGE-AP8220177 More informationQuantity required : 2 |
|||||||||
|
7 |
2B006936 CRANKCASE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/0/img/71390.jpg)
8 |
SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120253 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
9 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
|||||||||
|
10 |
CM3016226-EMEA ENGINE TUONO 1000 E4 MY'17 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/0/2/6/img/176026.jpg)
11 |
SENSOR OF CHANGEMENT DE SPEED OEM APRILIA 660, TUONO 2020 >/1000-1100 RSV4 2017 > (QUICK SHIFT)-2B015524 More informationQuantity required : 1 |
|||||||||
|
11 |
SENSOR OF CHANGEMENT DE SPEED OEM APRILIA 660, TUONO 2020 >/1000-1100 RSV4 2017 > (QUICK SHIFT)-2B015524 More informationQuantity required : 1 |
|||||||||
|
12 |
898134-BUSH More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/5/9/img/42959.jpg)
13 |
SCREW BTR HEAD FRAISEE (6X35) OEM PIAGGIO COMMON A LA RANGE-898463 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/5/9/6/img/145596.jpg)
14 |
ROD/TRINGLE DE CONTROL DE SPEED OEM APRILIA 1000 RSV4 2017 >-2B003382 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/3/8/img/42738.jpg)
15 |
GEAR LEVER OEM PIAGGIO APRILIA 1000 RSV-4 2011 >, 1100 RSV-4 2019 >, 1000 TUONO V4 2011 >, 1100 TUONO 2015 >-897360 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/2/img/71452.jpg)
16 |
ROD BRAKE LEVER REAR OEM PIAGGIO FOR MOTORCYCLE-GUZZI STELVIO 2024, 850-1200 NORGE, BREVA, 1200 SPORT/ROD SELECTEUR DE VITESSES RANGE MOTO APRILIA-AP8121221 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
17 |
RUBBER BRAKE LEVER REAR OU SELECTEUR OEM PIAGGIO FOR MOTORCYCLE-GUZZI/APRILIA-AP8120912 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
18 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8150431 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
19 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
20 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/8/img/71738.jpg)
21 |
O-RING (11, 11X1, 78) OEM PIAGGIO COMMON A LA RANGE-AP8144007 More informationQuantity required : 2 |
|||||||||
|
22 |
REAR BRAKE PEDAL PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -884033 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/1/img/71891.jpg)
23 |
CLIPS/CIRCLIPS DIAMETRE 9MM OEM PIAGGIO COMMON A LA RANGE-AP8150462 More informationQuantity required : 1 |
|||||||||
|
24 |
858923-GUIDE-CHA? NE More informationQuantity required : 1 |
|||||||||
|
25 |
2B000276-GRAFFETTA FISSAGGIO TUBI More informationQuantity required : 1 |
|||||||||
