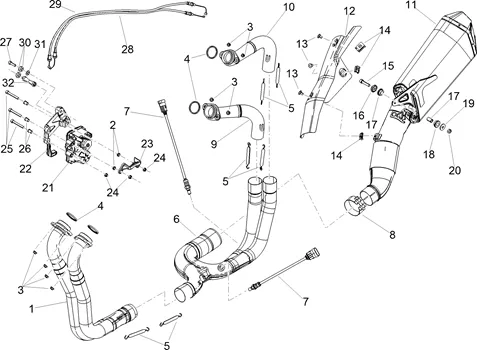

Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 1100 RR E4 ABS 2019 (EMEA LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Cadre : 28.25 POT D'ÉCHAPPEMENT I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/868/Tuono_V4_1100_RR_E4_ABS_2019_(EMEA_LATAM)_28.25.png)
1 |
858738 - COLLECTEUR ECHAPP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/8/img/71488.jpg)
2 |
BUSH EN T INNER 6 MM OEM PIAGGIO COMMON A LA RANGE-AP8121811 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
3 |
NUT EXHAUST ON CYLINDER HEAD MAXI SCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC-436947 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/2/8/5/img/214285.jpg)
4 |
GASKET EXHAUST EN SORTIE DE CYLINDER HEAD OEM PIAGGIO APRILIA 1000-1100 RSV-4 2011 >, TUONO V4/MOTO-GUZZI 750 V7, 850 V85, V9-2B012220 More informationQuantity required : 4 |
||||||
|
4 |
GASKET EXHAUST EN SORTIE DE CYLINDER HEAD OEM PIAGGIO APRILIA 1000-1100 RSV-4 2011 >, TUONO V4/MOTO-GUZZI 750 V7, 850 V85, V9-2B012220 More informationQuantity required : 4 |
||||||
|
5 |
AP8121170-SPRING More informationQuantity required : 6 |
||||||
|
6 |
2B003347-MANIFOLD ECHAP. CENTRAL More informationQuantity required : 1 |
||||||
|
7 |
2D000152-SONDA LAMBDA More informationQuantity required : 2 |
||||||
|
8 |
976521-FASCETTA STRIGITUBO PER SILENZIATORE More informationQuantity required : 1 |
||||||
|
9 |
858739 - COLLECTEUR ECHAPP. More informationQuantity required : 1 |
||||||
|
10 |
858740 - COLLECTEUR ECHAPP. More informationQuantity required : 1 |
||||||
|
11 |
2B0047665-SILENCER More informationQuantity required : 1 |
||||||
|
12 |
2B0041205-PROTECTOR BRULURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/3/9/img/42939.jpg)
13 |
SCREW FLANGE TORX (6X10) OEM PIAGGIO COMMON A LA RANGE-898385 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
15 |
SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8150236 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/3/img/46743.jpg)
16 |
BUSH SPACER DE SILENCER OEM APRILIA RSV4-AP8121199 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/8/img/71768.jpg)
17 |
BUSH RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8144558 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/5/img/71465.jpg)
18 |
SPACER (19X12X8. 3) OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8121455 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
19 |
WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
20 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8150431 More informationQuantity required : 1 |
||||||
|
21 |
2D000263-ACTIONNEUR More informationQuantity required : 1 |
||||||
|
22 |
2B003443-BRACKET More informationQuantity required : 1 |
||||||
|
23 |
2B003577-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
24 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/5/img/71875.jpg)
25 |
SCREW BTR (6X45) OEM PIAGGIO COMMON A LA RANGE-AP8150403 More informationQuantity required : 3 |
||||||
|
26 |
GU91120607-BUSH 6, 4X8, 4X10, 5 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
27 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/6/0/5/img/145605.jpg)
28 |
CABLE/CONTROL/TRANSMISSION OUVERTURE DE VALVE EXHAUST OEM APRILIA 1000-1100 RSV4 2017 > 2020-2B003425 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/6/2/6/img/145626.jpg)
29 |
CABLE/CONTROL/TRANSMISSION OF FASTENING VALVE EXHAUST OEM APRILIA 1000-1100 RSV4 2017 > 2020-2B003556 More informationQuantity required : 1 |
||||||
|
30 |
2B003714-GASKET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
31 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/2/5/7/img/42257.jpg)
32 |
SPACER DE HOUSING RECYCLAGE DE THROTTLE OEM PIAGGIO APRILIA 1000 RSV-4, 1100 RSV-4, TUONO V4-894933 More informationQuantity required : 1 |
