Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 1100 RR E4 ABS 2017-2018 (EMEA LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

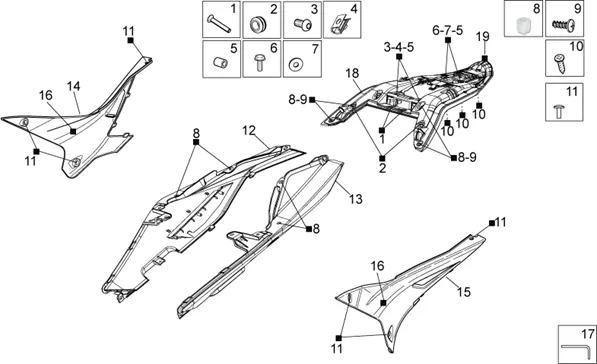

Chassis : 28.12 CARROSSERIE POSTERIEURE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/839/Tuono_V4_1100_RR_E4_ABS_2017-2018_(EMEA_LATAM)_28.12.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/2/img/71892.jpg)
1 |
SCREW BTR HEAD FRAISEE (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8150468 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
2 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8112600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
3 |
SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
5 |
AP9100594-BUSSOLA COLLETTO D16-D10-SP7 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
6 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/6/8/img/50868.jpg)
7 |
WASHER PLATE (6X12, 4) OEM PIAGGIO COMMON A LA RANGE-AP8150380 More informationQuantity required : 2 |
||||||
|
8 |
B043254-INSERT More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
9 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/8/img/71878.jpg)
10 |
SCREW CRUCIFORME (3. 9X7. 5) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150420 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
11 |
SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174 More informationQuantity required : 6 |
||||||
|
12 |
2H001786000XN2-TAIL D, BLACK More informationQuantity required : 1 |
||||||
|
12 |
2H001788000EU-TAIL D, GREY More informationQuantity required : 1 |
||||||
|
13 |
2H001787000XN2-TAIL G, BLACK More informationQuantity required : 1 |
||||||
|
13 |
2H001789000EU-TAIL G, GRISE More informationQuantity required : 1 |
||||||
|
14 |
858833-SIDE PANEL RIGHT More informationQuantity required : 1 |
||||||
|
15 |
858834-BODY PANEL G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/8/img/41728.jpg)
16 |
GASKET EPONGE ADHESIVE 15X8 OEM PIAGGIO COMMON A LA RANGE-890512 More informationQuantity required : 2 |
||||||
|
17 |
894195-TOOLS KEY More informationQuantity required : 1 |
||||||
|
18 |
89888000EU-GRIP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/4/4/2/img/51442.jpg)
19 |
STICKER/STICKER/GRAPHIC " APRILIA " OEM PIAGGIO APRILIA 125-250 RS, TUONO, CAPONORD, RSV-2-AP8157770 More informationQuantity required : 1 |
