Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 1100 E5 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

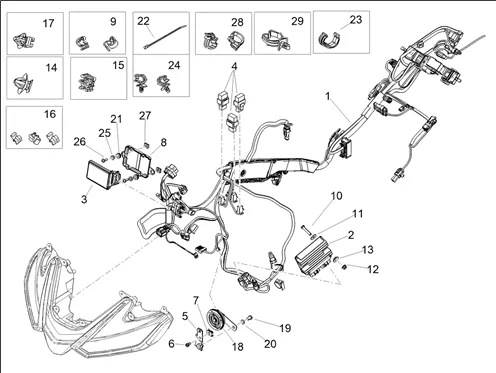

Dispositifs électriques : 11.01 CIRCUIT ELECTRIQUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1161/Tuono_V4_1100_E5_2021_(EMEA)_11.01.png)
1 |
2D000595 MAIN HARNESS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/5/1/img/158251.jpg)
2 |
REGULATEUR DE TENSION OEM PIAGGIO 300-400-500-530 MP3 2021 >/APRILIA 660 2021 > 1100 RSV4-TUONO 2021 >-1A012332 More informationQuantity required : 1 |
||||||
|
3 |
2D000633 TUONO V4 E5 SUSPENSIONS CONTROL UNIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
4 |
RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462 More informationQuantity required : 1 |
||||||
|
5 |
2B008699 HORN BRACKET BRACKET ASSEMBLY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/6/4/4/img/156644.jpg)
6 |
SCREW FLANGE TH (6X12) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B005143 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
7 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 1 |
||||||
|
8 |
2B007836 SUSPENSION CONTROL UNIT BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
9 |
PINCE CLIPS FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-CM013201 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/5/6/img/50956.jpg)
10 |
SCREW BTR HEAD BOMBEE (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152128 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
11 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
12 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
13 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 2 |
||||||
|
14 |
890760-BRACKET More informationQuantity required : 3 |
||||||
|
15 |
2D000348-CONNECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
16 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 4 |
||||||
|
17 |
1D000129-GASKET More informationQuantity required : 1 |
||||||
|
18 |
863339-HORN More informationQuantity required : 1 |
||||||
|
19 |
AP8152055-SCREW More informationQuantity required : 1 |
||||||
|
20 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/8/img/56838.jpg)
21 |
RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8220186 More informationQuantity required : 2 |
||||||
|
22 |
AP8141017-CLAMP More informationQuantity required : 3 |
||||||
|
23 |
2B006134-BRACKET More informationQuantity required : 4 |
||||||
|
24 |
AP8221310-GUIDE-CABLE More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/0/img/71500.jpg)
25 |
BUSH EN T (6. 5X8. 6X9) OEM PIAGGIO COMMON A LA RANGE-AP8121929 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
26 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
27 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 2 |
||||||
|
28 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 1 |
||||||
|
29 |
AP8221311-GUIDE-CABLE More informationQuantity required : 4 |
