Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 1100 E5 2021-23 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

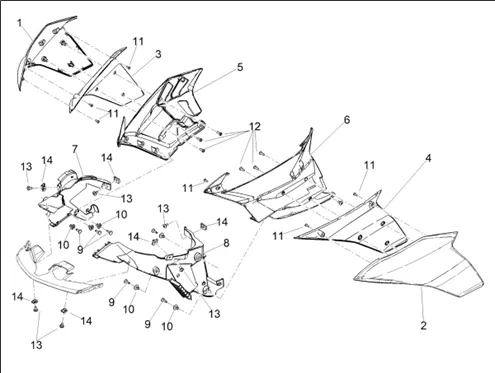

Carrosserie : 02.08 CARÈNE LATERAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1191/Tuono_V4_1100_E5_2021-23_(EMEA)_02.08.png)
1 |
2B008098000YR4-CARÃ ¨ NE LATÃ - RALE D. RED More informationQuantity required : 1 |
||||||
|
1 |
2B008098000XBC RH SIDE FAIRING More informationQuantity required : 1 |
||||||
|
1 |
2B008098 RH SIDE FAIRING More informationQuantity required : 1 |
||||||
|
1 |
2B008098000ET RH SIDE FAIRING More informationQuantity required : 1 |
||||||
|
2 |
2B008099000YR4-CARÃ ¨ NE LATÃ - RALE G. RED More informationQuantity required : 1 |
||||||
|
2 |
2B008099000XBC LH SIDE FAIRING More informationQuantity required : 1 |
||||||
|
2 |
2B008099000ET LH SIDE FAIRING More informationQuantity required : 1 |
||||||
|
2 |
2B008099 LH SIDE FAIRING More informationQuantity required : 1 |
||||||
|
3 |
2B008100-RH SIDE FAIRING COVER-PRODUIT NON REMPLACEMENT NON DÉFINI More informationQuantity required : 1 |
||||||
|
4 |
2B008101-LH SIDE FAIRING COVER-PRODUIT NON REMPLACEMENT NON DÉFINI More informationQuantity required : 1 |
||||||
|
5 |
2B008096000NV RH INTERNAL SIDE FAIRING More informationQuantity required : 1 |
||||||
|
5 |
2B008096 RH INTERNAL SIDE FAIRING More informationQuantity required : 1 |
||||||
|
6 |
2B008097000NV LH INTERNAL SIDE FAIRING More informationQuantity required : 1 |
||||||
|
6 |
2B008097 LH INTERNAL SIDE FAIRING More informationQuantity required : 1 |
||||||
|
7 |
2B008089 - RH RADIATOR FRAME More informationQuantity required : 1 |
||||||
|
8 |
2B008245 - LH RADIATOR FRAME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
9 |
RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
10 |
RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
11 |
SCREW CRUCIFORME (3. 9X10) TARAUD STAINLESS STEEL FOR PLASTIQUE OEM PIAGGIO COMMON A LA RANGE-AP8150444 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
12 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
13 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
14 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
