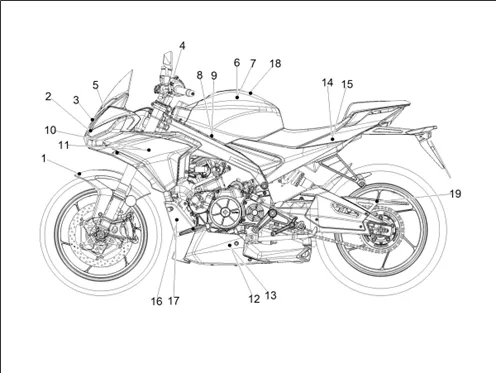

Carrosserie : 02.19 DÉCALCO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1311/Tuono_660_4T_8V_E5_ABS_2023_(EMEA)_02.19.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/0/1/5/img/159015.jpg)
1 |
STICKER/STICKER/GRAPHIC FRONT MUDGUARD " BE A RACER " OEM APRILIA COMMON A LA RANGE-2H003453 More informationQuantity required : 1 |
||||||
2 |
2H005588-STICKER KER DOOR-NUMÃ - RO FRONTAL C More informationQuantity required : 1 |
||||||
|
2 |
2H005714-STICKER KER DOOR-NUMÃ - RO FRONTAL C More informationQuantity required : 1 |
||||||
|
3 |
2H004228 STICKER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/4/4/2/img/51442.jpg)
4 |
STICKER/STICKER/GRAPHIC " APRILIA " OEM PIAGGIO APRILIA 125-250 RS, TUONO, CAPONORD, RSV-2-AP8157770 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/8/4/4/img/174844.jpg)
5 |
STICKER/STICKER/GRAPHIC DRAPEAU ITALIA OEM APRILIA 660-1100 TUONO 2021 >-2H004229 More informationQuantity required : 1 |
||||||
|
6 |
2H005704-DÃ - CALCO RÃ - SERVOIR DTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/0/8/img/204008.jpg)
6 |
2H005715-DÃ - CALCO RÃ - SERVOIR DTE More informationQuantity required : 1 |
||||||
|
7 |
2H005705-DÃ - CALCO RÃ - SERVOIR GCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/1/0/img/204010.jpg)
7 |
2H005716-DÃ - CALCO RÃ - SERVOIR GCHE More informationQuantity required : 1 |
||||||
|
8 |
2H005706-DÃ - CALCO RÃ - SERVOIR DTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/1/2/img/204012.jpg)
9 |
2H005707-DÃ - CALCO RÃ - SERVOIR GCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/1/3/img/204013.JPG)
10 |
2H005708-STICKER CARÃ - NAGE LATÃ - RAL D More informationQuantity required : 1 |
||||||
|
11 |
2H005709-STICKER CARÃ - NAGE LATÃ - RAL G More informationQuantity required : 1 |
||||||
|
12 |
2H004232 STICKER More informationQuantity required : 1 |
||||||
|
13 |
2H004233 STICKER More informationQuantity required : 1 |
||||||
|
14 |
2H005712-DÃ - CALCO TAIL D More informationQuantity required : 1 |
||||||
|
14 |
2H005717-DÃ - CALCO TAIL D More informationQuantity required : 1 |
||||||
|
15 |
2H005713-DÃ - CALCO TAIL G More informationQuantity required : 1 |
||||||
|
15 |
2H005718-DÃ - CALCO TAIL G More informationQuantity required : 1 |
||||||
|
16 |
2H005710-STICKER EMBOUT CARÃ - NAGE D More informationQuantity required : 1 |
||||||
|
17 |
2H005711-STICKER EMBOUT CARÃ - NAGE G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/7/9/9/img/108799.jpg)
18 |
STICKER/STICKER/GRAPHIC OEM APRILIA COMMON A LA RANGE-2H000874 More informationQuantity required : 1 |
||||||
|
19 |
2B008140-STICKER More informationQuantity required : 1 |
