Vehicle Exploded View - APRILIA TUONO 125 4T E5 ABS 2021 (EMEA) APRILIA

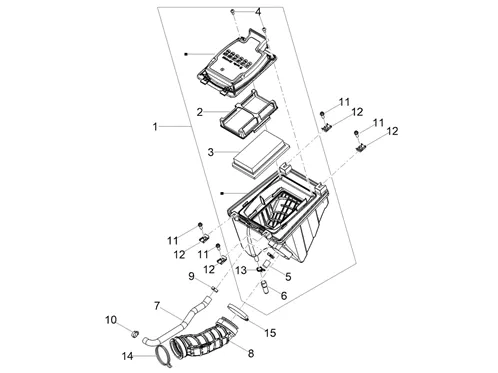

Moteur : 03.05 CORPS FILTRE
Corps filtre
Search
2B007500 - COMPLETE AIR CLEANER BOX

1
P2R reference P2R reference 176998
Maker reference Maker reference 2B007500

2B007500 COMPLETE AIR CLEANER BOX

More information

Quantity required : 1

2B007499 - CADRE FIXATION FILTRE A AIR

2
P2R reference P2R reference 177002
Maker reference Maker reference 2B007499

2B007499 CADRE MOUNTING AIR FILTER

More information

Quantity required : 1

ELEMENT/MOUSSE DE AIR FILTER OEM PIAGGIO APRILIA 50-125 RS 2011 >, TUONO 2017 >, 125 RX, SX 2018 >-861130

3
P2R reference P2R reference 69840
Maker reference Maker reference 861130

ELEMENT/MOUSSE DE AIR FILTER OEM PIAGGIO APRILIA 50-125 RS 2011 >, TUONO 2017 >, 125 RX, SX 2018 >-861130

More information

Quantity required : 1

SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174

4
P2R reference P2R reference 70837
Maker reference Maker reference 896174

SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174

More information

Quantity required : 2

2B007548 - PLUG

5
P2R reference P2R reference 176999
Maker reference Maker reference 2B007548

2B007548 PLUG

More information

Quantity required : 1

CAPUCHON DE BODY DE FILTER OEM PIAGGIO COMMON ALA RANGE APRILIA/MOTO GUZZI-AP8161054

6
P2R reference P2R reference 72005
Maker reference Maker reference AP8161054

CAPUCHON DE BODY DE FILTER OEM PIAGGIO COMMON ALA RANGE APRILIA/MOTO GUZZI-AP8161054

More information

Quantity required : 1

863320 - TUBO DESVAPORIZADOR MUL125

7
P2R reference P2R reference 70026
Maker reference Maker reference 863320

863320-TUBO DESVAPORIZADOR MUL125

More information

Quantity required : 1

2B007389 - AIRBOX TO ENGINE MANIFOLD

8
P2R reference P2R reference 177000
Maker reference Maker reference 2B007389

2B007389 AIRBOX TO ENGINE MANIFOLD

More information

Quantity required : 1

CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905

9
P2R reference P2R reference 72867
Maker reference Maker reference CM001905

CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905

More information

Quantity required : 1

CLAMP CLIC (20X8) OEM PIAGGIO COMMON A LA RANGE-AP8102786

10
P2R reference P2R reference 71200
Maker reference Maker reference AP8102786

CLAMP CLIC (20X8) OEM PIAGGIO COMMON A LA RANGE-AP8102786

More information

Quantity required : 1

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

11
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 4

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272

12
P2R reference P2R reference 71938
Maker reference Maker reference AP8152272

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272

More information

Quantity required : 4

CLAMP SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-AP8102520

13
P2R reference P2R reference 71182
Maker reference Maker reference AP8102520

CLAMP SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-AP8102520

More information

Quantity required : 1

CLAMP (70-50X8) ORRIGINE PIAGGIO COMMON A LA RANGE-AP8102401

14
P2R reference P2R reference 71178
Maker reference Maker reference AP8102401

CLAMP (70-50X8) ORRIGINE PIAGGIO COMMON A LA RANGE-AP8102401

More information

Quantity required : 1

00H03200271 - COLLIER

15
P2R reference P2R reference 177463
Maker reference Maker reference 00H03200271

00H03200271 CLAMP

More information

Quantity required : 1
