Vehicle Exploded View - APRILIA TUAREG 660 E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

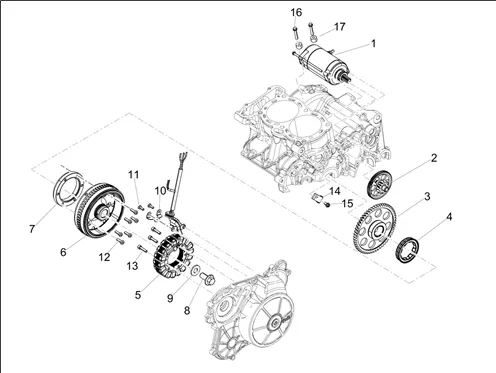

Moteur : 03.30 VOLANT MAGNÉTIQUE / ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1016/Tuareg_660_E5_ABS_2021_(EMEA)_03.30.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/7/0/img/108970.jpg)
1 |
STARTER MOTOR OEM PIAGGIO 660 APRILIA TUONO, TUAREG, RS 2020 > 1000/1100 RSV4 2015 >-B044495 More informationQuantity required : 1 |
|||||||||
2 |
1A012162 - ELECTRIC STARTER INTERMEDIATE WITH I.P More informationQuantity required : 1 |
|||||||||
|
3 |
82953R INAMOVABLE TOOTHED CROWN ELETTRIC START More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/1/2/img/68912.jpg)
4 |
WHEEL LIBRE DE STARTER MOTOR OEM APRILIA DORSODURO, CAPONORD, SHIVER, 660RS-830389 More informationQuantity required : 1 |
|||||||||
|
5 |
1A019557 - COMPLETE STATOR More informationQuantity required : 1 |
|||||||||
|
6 |
1A016098 ROTOR COMPLETE More informationQuantity required : 1 |
|||||||||
|
7 |
82964R - CIRCLIPS More informationQuantity required : 1 |
|||||||||
|
8 |
B015563-SCREW More informationQuantity required : 1 |
|||||||||
|
9 |
825725-WASHER More informationQuantity required : 1 |
|||||||||
|
10 |
1A013141 PLATE More informationQuantity required : 1 |
|||||||||
|
11 |
1A002950 SCREW More informationQuantity required : 2 |
|||||||||
|
12 |
1A018667 HEXAGON SOCKET CYLINDER HEAD SCREW More informationQuantity required : 6 |
|||||||||
|
13 |
1A002951-SCREW More informationQuantity required : 3 |
|||||||||
|
14 |
848845-TTLE More informationQuantity required : 1 |
|||||||||
|
15 |
878872-SCREW FLANGE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
16 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/0/5/img/65805.jpg)
17 |
SPACER (D6) OEM PIAGGIO COMMON A LA RANGE-184400 More informationQuantity required : 2 |
|||||||||
