Vehicle Exploded View - PIAGGIO VU TRACKMASTER ATV 500 Trackmaster 500 PIAGGIO VU

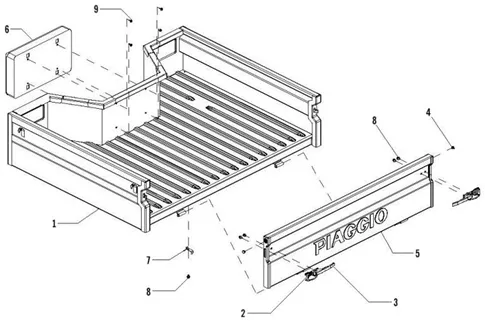

Châssis - parties plastiques - carrosseries : 02.17 BENNE OUVERTE - RIDELLES
Benne ouverte - Ridelles
Search
646149 - CAISSE

1
P2R reference P2R reference 124141
Maker reference Maker reference 646149

646149 - CAISSE

More information

Quantity required : 1

6614787Z01000 - PANNEAU INS.

2
P2R reference P2R reference 112174
Maker reference Maker reference 6614787Z01000

6614787Z01000 PANEL INS.

More information

Quantity required : 2

LATCH DE PORTILLON OEM PIAGGIO PORTER-6620187Z01000

3
P2R reference P2R reference 116776
Maker reference Maker reference 6620187Z01000

LATCH DE PORTILLON OEM PIAGGIO PORTER-6620187Z01000

More information

Quantity required : 2

9004871154000 - BOUCHON

4
P2R reference P2R reference 111044
Maker reference Maker reference 9004871154000

9004871154000 CAP

More information

Quantity required : 2

646151 - ABATTANT

5
P2R reference P2R reference 120468
Maker reference Maker reference 646151

646151 - ABATTANT

More information

Quantity required : 1

646152 - SUPPORT

6
P2R reference P2R reference 118929
Maker reference Maker reference 646152

646152 - SUPPORT

More information

Quantity required : 1

651621 - SUPPORT

7
P2R reference P2R reference 113100
Maker reference Maker reference 651621

651621 - SUPPORT

More information

Quantity required : 1

9165140610000 - BOULON

8
P2R reference P2R reference 110485
Maker reference Maker reference 9165140610000

9165140610000 BOLT

More information

Quantity required : 5

SCREW CRUCIFORME (5X13) OEM PIAGGIO COMMON A LA RANGE-CM288614

9
P2R reference P2R reference 110546
Maker reference Maker reference 9004159230000

SCREW CRUCIFORME (5X13) OEM PIAGGIO COMMON A LA RANGE-CM288614

More information

Quantity required : 4
