Vehicle Exploded View - APRILIA SXV 550 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

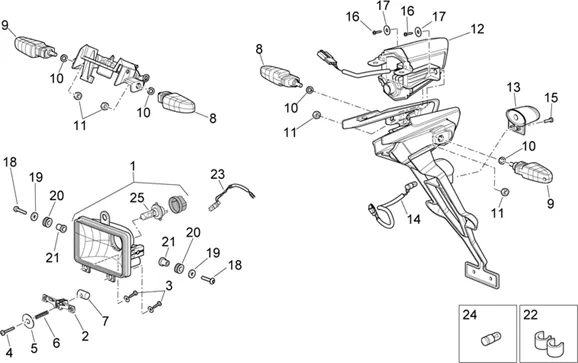

Chassis : 28.31 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/645/SXV_550_2006-2007_28.31.PNG)
1 |
851033 - PHARE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/3/img/97073.jpg)
1 |
HEADLAMP "PIAGGIO GENUINE PART" APRILIA 450-550 RXV, SXV, 50-125 MX 2004>2006 -AP8127741 More informationQuantity required : 1 |
||||||
|
2 |
AP9100635-PIASTRINA REGOLAZ. FANALE ANT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 2 |
||||||
|
4 |
AP8150475-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.jpg)
5 |
WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150011 More informationQuantity required : 1 |
||||||
|
6 |
AP8221198-SPRING REGLAGE HEADLAMP More informationQuantity required : 1 |
||||||
|
7 |
AP9100747-BARILOTTO REGOLAZ. FANALE ANT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/2/5/4/img/48254.jpg)
8 |
FLASHER-FRONT-LEFT/REAR-RIGHT "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2006>2010, 650 PEGASO, 450-550 RXV, SXV -AP8127657 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/2/5/3/img/48253.jpg)
9 |
FLASHER-FRONT-RIGHT/REAR-LEFT "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2006>2010, 650 PEGASO, 450-550 RXV, SXV -AP8127656- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
10 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/5/img/97095.jpg)
11 |
AP8152262 - ECROU BAS More informationQuantity required : 4 |
||||||
|
12 |
AP9100523 - ASSIEME FANALE POST.CON CABL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/2/img/69642.jpg)
13 |
ECLAIRAGE DE PLATE D'IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-85256R More informationQuantity required : 1 |
||||||
|
14 |
AP8124873-WIRING LUMIERE PLATE More informationQuantity required : 1 |
||||||
|
15 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 1 |
||||||
|
16 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/6/img/71826.jpg)
17 |
WASHER 4X16 OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150159 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
18 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152137 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.jpg)
19 |
WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
20 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8112600 More informationQuantity required : 2 |
||||||
|
21 |
AP8121665-" BUSH EN " " T " " " More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/1/0/img/72610.jpg)
22 |
CLIPS SPRING MOUNTING HARNESS ORIGNE APRILIA-MOTO GUZZI COMMON A LA RANGE-AP9100519 More informationQuantity required : 3 |
||||||
|
23 |
AP9100634 - CABLAGGIO FANALE ANTERIORE More informationQuantity required : 1 |
||||||
|
24 |
AP9100976 - PORTALAMP.E LAMPADA WY2, 3W More informationQuantity required : 16 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
25 |
AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723 More informationQuantity required : 1 |
