Vehicle Exploded View - APRILIA SXV 450 Street Legal 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

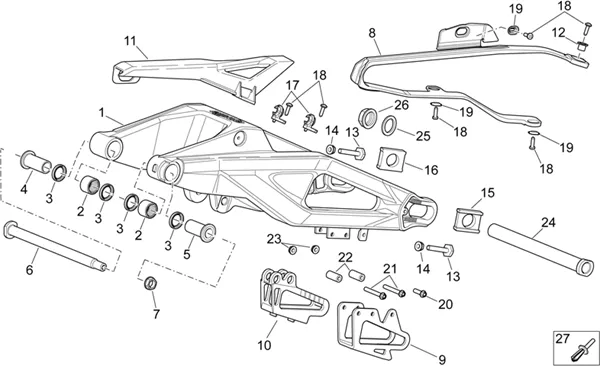

Chassis : 28.06 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/625/SXV_450_Street_Legal_2009-2011_28.06.PNG)
1 |
AP9100120 - ASSIEME FORCELLONE POST.MOTARD More informationQuantity required : 1 |
||||||
|
2 |
AP9100202 - GABBIA A RULLINI D22 D 29 L30 More informationQuantity required : 2 |
||||||
|
3 |
AP9100203 - ANELLO DI TENUTA D22 D29 SP4 More informationQuantity required : 4 |
||||||
|
4 |
AP9100952-SPINOTTO FORCELLONE L: 47. 5 More informationQuantity required : 1 |
||||||
|
5 |
AP9100953-SPINOTTO FORCELLONE L: 59. 5 More informationQuantity required : 1 |
||||||
|
6 |
AP9100264-PERNO FORCELLONE M14 L: 259 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/4/img/97094.jpg)
7 |
NUT FLANGE (14X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8152244 More informationQuantity required : 1 |
||||||
|
8 |
AP9100061-PATTINO CATENA More informationQuantity required : 1 |
||||||
|
9 |
AP9100060-GUIDACATENA More informationQuantity required : 1 |
||||||
|
10 |
AP9100109-CRUNA CATENA More informationQuantity required : 1 |
||||||
|
11 |
AP9100435-COPRICATENA More informationQuantity required : 1 |
||||||
|
12 |
AP9100616 - BUSSOLA FISSAGGIO COPRICATENA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/2/img/71962.jpg)
13 |
SCREW REGLAGE TENSION CHAIN OEM APRILIA COMMON A LA RANGE-AP8152305 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/7/img/50827.jpg)
14 |
NUT (M8) OEM PIAGGIO COMMON A LA RANGE-AP8150027 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/7/img/97077.jpg)
15 |
INSERT/GUIDE CHAIN RIGHT OEM PIAGGIO APRILIA DORSODURO, SHIVER, RSV-2, RSV-4, TUONO-AP8144444 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/6/img/97076.jpg)
16 |
INSERT/GUIDE CHAIN RIGHT OEM PIAGGIO APRILIA DORSODURO, SHIVER, RSV-2, RSV-4, TUONO-AP8144443 More informationQuantity required : 1 |
||||||
|
17 |
AP9100565-PASSATUBO BRAKE POST. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/8/8/img/97088.jpg)
18 |
SCREW CRUCIFORME (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8150515 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/6/8/img/97168.jpg)
19 |
WASHER FOR PATIN GUIDE CHAIN OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8234020 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
20 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 1 |
||||||
|
21 |
AP9100433-SCREW TE FLANG. M6X50 More informationQuantity required : 2 |
||||||
|
22 |
AP9100287 - BUSSOLA CRUNA CATENA More informationQuantity required : 2 |
||||||
|
23 |
AP9100434-DADO AUTOBL. FLANGIATO M6X1 More informationQuantity required : 2 |
||||||
|
24 |
AP9100270-PERNO WHEEL POSTER. L: 318. 5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/7/img/71967.jpg)
25 |
WASHER (25. 2X36X1) WHEEL SPINDLE FRONT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8152323 More informationQuantity required : 1 |
||||||
|
26 |
855722-NUT DE WHEEL M25X1, 5 More informationQuantity required : 1 |
||||||
|
27 |
AP8202058-RIVET EN PLASTIC BLACK More informationQuantity required : 4 |
