Vehicle Exploded View - APRILIA SXV 450 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

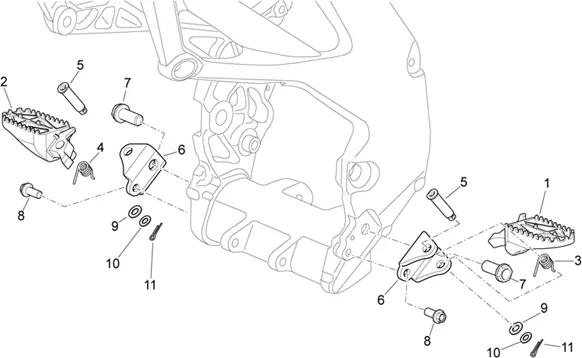

Chassis : 28.02 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/644/SXV_450_2006-2007_28.02.PNG)
1 |
853538 - COUVERCLE More informationQuantity required : 1 |
||||||
|
1 |
AP9100193 - PEDANA SX More informationQuantity required : 1 |
||||||
|
2 |
853539 - COUVERCLE More informationQuantity required : 1 |
||||||
|
2 |
AP9100194-PEDANA DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/0/1/img/72601.jpg)
3 |
SPRING OF REST FOOT PILOTE LEFT OEM APRILIA COMMON A LA RANGE-AP9100195 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/2/0/6/img/97206.jpg)
4 |
SPRING OF REST FOOT PILOTE RIGHT OEM PIAGGIO APRILIA 750-900-1200 DORSODURO, 1200 CAPONORD, 450-550 RXV, SXV-AP9100196 More informationQuantity required : 1 |
||||||
|
5 |
853540 - PIVOT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/0/2/img/72602.jpg)
5 |
PIVOT OF REST FOOT FRONT OEM APRILIA CAPONORD, DORSODURO-AP9100197 More informationQuantity required : 2 |
||||||
|
6 |
853541 - SUPPORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/2/3/9/img/97239.jpg)
6 |
AP9100275 - STAFFA ATTACCO PEDANA More informationQuantity required : 2 |
||||||
|
7 |
AP9100390-SCREW M12X1, 25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
8 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/2/img/97092.jpg)
9 |
WASHER PLATE (10. 5X18X2) OEM PIAGGIO COMMON A LA RANGE-AP8152176 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
10 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 2 |
||||||
|
11 |
AP8101606 - GOUPILLE More informationQuantity required : 2 |
