Vehicle Exploded View - APRILIA SX 125 E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

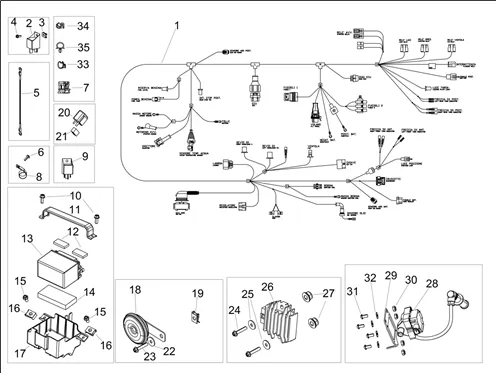

Châssis/coque : 11.16 CIRCUIT ÉLECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1020/SX_125_E5_2022_(EMEA)_11.16.png)
1 |
2D000636 MAIN HARNESS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/7/4/img/67974.jpg)
2 |
RELAIS 12V-80A STARTER MOTOR OEM PIAGGIO 50 FLY 4T, ZIP 4T, TYPHOON 2T + 4T 2011 >/APRILIA 50 SR MOTARD 2T + 4T 2011 >-642318 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/5/img/63895.jpg)
4 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-00D05910081 More informationQuantity required : 1 |
|||||||||
|
5 |
2R000343-CABLE BATTERY More informationQuantity required : 1 |
|||||||||
|
6 |
873653-SCREW TARAUD More informationQuantity required : 1 |
|||||||||
|
7 |
1D000680-SPRING More informationQuantity required : 1 |
|||||||||
|
8 |
642044-COLLIERS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/8/img/67258.jpg)
9 |
RELAIS STARTER MOTOR 12V 30A OEM PIAGGIO COMMON A TOUTE LA RANGE-58246R More informationQuantity required : 3 |
|||||||||
|
10 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-00D05910081 More informationQuantity required : 1 |
|||||||||
|
11 |
2R000388-SEAT HOLDER More informationQuantity required : 1 |
|||||||||
|
12 |
AP8117041-EPONGE ADHESIVE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/5/img/67305.jpg)
13 |
BATTERY 12V 6 AH YTX7L-BS OEM PIAGGIO COMMON A LA RANGE-584662 More informationQuantity required : 1 |
|||||||||
|
14 |
00H01812471-TOPE BASE BATERIA DRD PRO More informationQuantity required : 1 |
|||||||||
|
15 |
2R000406-SCREW M6 - 20 More informationQuantity required : 2 |
|||||||||
|
16 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
|||||||||
|
17 |
2B004470-BOX BATTERY More informationQuantity required : 1 |
|||||||||
|
18 |
2R000367-AVERTISSEUR ACOUSTIQUE More informationQuantity required : 1 |
|||||||||
|
19 |
2R000441-NUT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/6/0/8/8/img/206088.jpg)
20 |
CENTRE CLIGNOTANTE 2 BROCHES OEM PIAGGIO COMMON A LA RANGE-1D004175R More informationQuantity required : 1 |
|||||||||
|
20 |
CENTRE CLIGNOTANTE 2 BROCHES OEM PIAGGIO COMMON A LA RANGE-1D004175R More informationQuantity required : 1 |
|||||||||
|
21 |
642317-SOUTIEN DES INDICATEURS DE STEERING More informationQuantity required : 1 |
|||||||||
|
22 |
2R000419-WASHER # 8. 4 - # 16 - 1. 6 More informationQuantity required : 2 |
|||||||||
|
23 |
2R000408-SCREW M8 - 20 More informationQuantity required : 1 |
|||||||||
|
24 |
2R000407-SCREW M6 - 25 More informationQuantity required : 2 |
|||||||||
|
25 |
2R000417-WASHER # 6. 4 - # 12 - 1. 6 More informationQuantity required : 2 |
|||||||||
|
26 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5 More informationQuantity required : 1 |
|||||||||
|
27 |
2R000426-GEFLANSCHTE MUTTER More informationQuantity required : 2 |
|||||||||
|
28 |
2R000473-CABLE More informationQuantity required : 1 |
|||||||||
|
29 |
2B007863 COIL BRACKET More informationQuantity required : 1 |
|||||||||
|
30 |
020003-NUT S02000300 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/7/9/img/67279.jpg)
31 |
SCREW CRUCIFORME (3X20) OEM PIAGGIO COMMON A LA RANGE-583236 More informationQuantity required : 4 |
|||||||||
|
32 |
012554-WASHER More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/8/img/72918.jpg)
33 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
34 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
35 |
CLIPS SPRING (D17) OEM PIAGGIO COMMON A LA RANGE-231590 More informationQuantity required : 1 |
|||||||||
