Vehicle Exploded View - APRILIA SX 125 E5 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

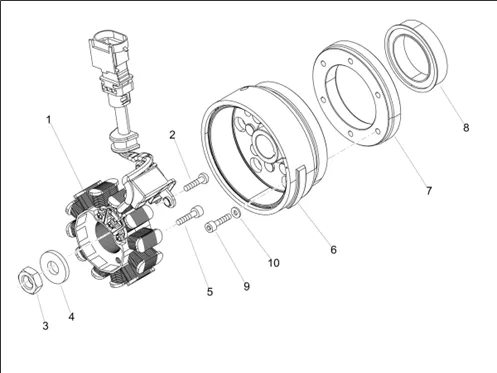

Moteur : 03.30 VOLANT MAGNÉTIQUE / ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1257/SX_125_E5_2021_(EMEA)_03.30.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/6/8/img/67868.jpg)
1 |
STATOR OEM PIAGGIO APRILIA 125 RS4 2011 >, TUONO 2017 >, RX 2018 >, SX 2018 >-640043 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
2 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109 More informationQuantity required : 2 |
||||||
3 |
1A009076-NUT SPECIALE More informationQuantity required : 1 |
||||||
|
4 |
1A009218-WASHER PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/8/img/127168.jpg)
5 |
SCREW BTR (5X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-1A003115 More informationQuantity required : 2 |
||||||
|
6 |
ROTOR OEM PIAGGIO 125 RS APRILIA 2011 >-641009 More informationQuantity required : 1 |
||||||
|
7 |
871369-BUSH D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
8 |
871521-GEAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/9/4/img/69194.jpg)
9 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-841613 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/9/img/66579.jpg)
10 |
WASHER GROWER (6) OEM PIAGGIO COMMON A LA RANGE-479515 More informationQuantity required : 6 |
