Vehicle Exploded View - APRILIA SX 125 E4 2018-2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

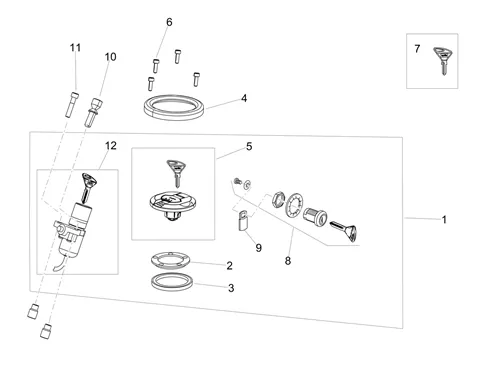

Châssis : 02.06 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/968/SX_125_E4_2018-2020_(EMEA)_02.06.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/4/4/8/img/154448.jpg)
1 |
IGNITION SWITCH/LOCK OEM PIAGGIO 125 RX, SX APRILIA 2018 > 2020-2R000502 More informationQuantity required : 1 |
||||||
2 |
2R000385-FLANGE TANK ESS. More informationQuantity required : 1 |
||||||
|
3 |
2R000384-GASKET More informationQuantity required : 1 |
||||||
|
4 |
865968-ADORNO TAPON DPSTO. GASOL. DRD125 09 More informationQuantity required : 1 |
||||||
|
5 |
2R000383-CAP FUEL TANK More informationQuantity required : 1 |
||||||
|
6 |
2R000402-SCREW M5X10 More informationQuantity required : 1 |
||||||
|
7 |
2R000389-CLE More informationQuantity required : 1 |
||||||
|
8 |
2R000401-LOCK SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/8/1/img/64281.jpg)
9 |
LEVER LATCH SEAT OEM APRILIA 125 RX, SX 2018 >-00H00603141 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/3/2/img/65032.jpg)
10 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-00H06300791 More informationQuantity required : 1 |
||||||
|
11 |
2R000408-SCREW M8 - 20 More informationQuantity required : 1 |
||||||
|
12 |
2R000398-SWITCH A CLEF More informationQuantity required : 1 |
