Vehicle Exploded View - MOTO-GUZZI STRADA 1000 1993-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

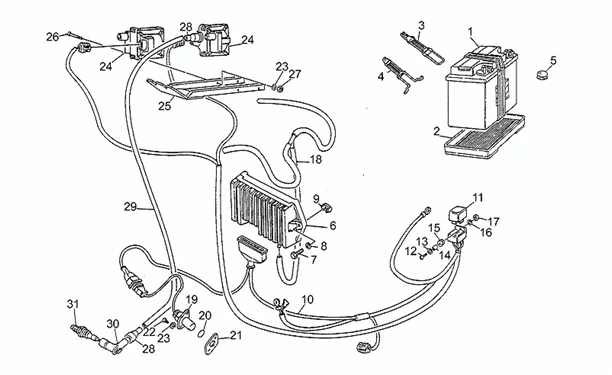

Chassis : 33.26 ALLUMAGE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/521/Strada_1000_1993-1994_33.26.PNG)
1 |
BATTERIE |
||||||
|
2 |
GU28707050 - BOITIER BATTERIE More informationQuantity required : 1 |
||||||
|
3 |
GU14705500 - ELASTIQUE DE FIXATION More informationQuantity required : 1 |
||||||
|
4 |
Elastique de fixation |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/7/img/132577.jpg)
5 |
CAP RUBBER REGARD OEM MOTO GUZZI COMMON A LA RANGE-GU93180220 More informationQuantity required : 1 |
||||||
|
6 |
Centrale MED 446A |
||||||
|
7 |
GU98054320-SCREW M6X20 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
8 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 2 |
||||||
|
9 |
GU92660601-NUT EN CAGE More informationQuantity required : 2 |
||||||
|
10 |
|
||||||
|
11 |
Relais démarrage |
||||||
|
12 |
GU98622216-SCREW More informationQuantity required : 1 |
||||||
|
13 |
|
||||||
|
14 |
GU91180607 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
15 |
GU91551073-ANNEAU EN RUBBER More informationQuantity required : 1 |
||||||
|
16 |
GU95000205-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/0/img/132500.jpg)
17 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-GU92630105 More informationQuantity required : 1 |
||||||
|
18 |
|
||||||
|
19 |
Capteur phase et tours |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
20 |
O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/3/9/img/130439.jpg)
21 |
GASKET SENSOR PHASE/TOURS (0. 5MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU29722760 More informationQuantity required : 1 |
||||||
|
22 |
|
||||||
|
23 |
GU95004205-WASHER More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/3/3/img/130933.jpg)
24 |
BOBINE IGNITION OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 1994 > 2004, 1200 GRISO 2007 > 2017, 750 V7 2008 > 2012, 1200 NORGE 2010 >, 1200 SPORT 2008 > 2013, 1100 V11 1999 > 2005-GU30716500 More informationQuantity required : 2 |
||||||
|
25 |
|
||||||
|
26 |
|
||||||
|
27 |
GU92630104-NUT M4X0, 7 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
28 |
CAPUCHON/RUBBER HT OEM MOTO GUZZI COMMON A LA RANGE-GU14717600 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/7/7/img/129377.jpg)
29 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL 2 VALVES MOTO-GUZZI -GU17718350 More informationQuantity required : 2 |
||||||
|
30 |
AP8212219 - PIPE BOUGIE BLINDEE More informationQuantity required : 2 |
||||||
|
31 |
BOUGIE |
