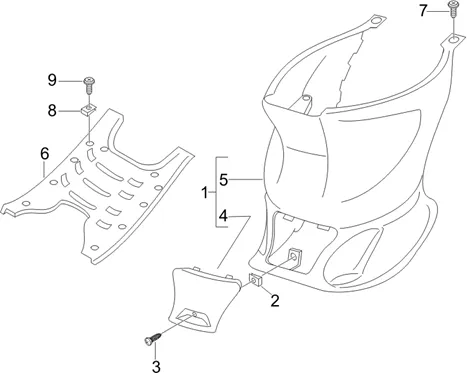

Vehicle Exploded View - GILERA STALKER 50 2005-2006 GILERA

Châssis - parties plastiques - carrosseries : 02.31 PROTECTION CENTRALE - REPOSE-PIEDS
Protection centrale - Repose-pieds
Search
HELMET COMPARTMENT COVER "PIAGGIO GENUINE PART" GILERA 50 STALKER 1998>2011 -299314400C

1
P2R reference P2R reference 78055
Maker reference Maker reference 299314400C

HELMET COMPARTMENT COVER "PIAGGIO GENUINE PART" GILERA 50 STALKER 1998>2011 -299314400C

More information

Quantity required : 1

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

2
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

3
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

More information

Quantity required : 1

SPARK PLUG TRAPDOOR "PIAGGIO GENUINE PART" GILERA 50 STALKER -299101000C-

4
P2R reference P2R reference 78041
Maker reference Maker reference 299101000C

SPARK PLUG TRAPDOOR "PIAGGIO GENUINE PART" GILERA 50 STALKER -299101000C-

More information

Quantity required : 1

COUVERCLE

5
P2R reference P2R reference
Maker reference Maker reference 299158

COUVERCLE

STEP FOOT/PLANCHER OEM PIAGGIO GILERA 50 STALKER 1998 > 2011-299092000C

6
P2R reference P2R reference 78039
Maker reference Maker reference 299092000C

STEP FOOT/PLANCHER OEM PIAGGIO GILERA 50 STALKER 1998 > 2011-299092000C

More information

Quantity required : 1

6
P2R reference P2R reference
Maker reference Maker reference 2990925

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

7
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

More information

Quantity required : 2

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

8
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 2

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

9
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

More information

Quantity required : 3
