Vehicle Exploded View - APRILIA SR 200 SR COMPACT GT 200 E5 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

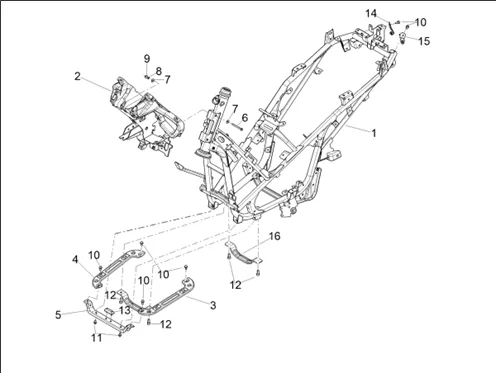

Châssis/coque : 01.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1198/SR_COMPACT_GT_200_E5_2021_EMEA_01.01.png)
1 |
1B007890-CADRE WITH PIECES INTERNES More informationQuantity required : 1 |
||||||
|
2 |
1B008089-FRAME FRONT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/6/6/8/img/195668.jpg)
3 |
TRAVERSE APPUI OF REST FOOT LEFT OEM APRILIA 125 SR GT 2021 >-1B008160 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/6/6/9/img/195669.jpg)
4 |
TRAVERSE APPUI OF REST FOOT RIGHT OEM APRILIA 125 SR GT 2021 >-1B008571 More informationQuantity required : 1 |
||||||
|
5 |
1B008572-CROSS BAR MANIFOLD WITH IP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/5/img/72705.jpg)
6 |
SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
7 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
8 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/0/img/70940.jpg)
9 |
NUT FLANGE (D6) DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE-969224 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
10 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 6 |
||||||
|
11 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/3/2/8/img/78328.jpg)
12 |
SCREW BTR (8X18) OEM PIAGGIO COMMON A LA RANGE-319532 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/3/img/67043.jpg)
13 |
BUFFER DE STAND OEM PIAGGIO 50 VESPA LX 4T, VESPA-S 4T, ZIP 4T, LIBERTY 4T, 125 VESPA LX, VESPA-S, FLY, 400-500 BEVERLY-563984 More informationQuantity required : 1 |
||||||
|
14 |
1B009881-FLANGE RIGHT More informationQuantity required : 1 |
||||||
|
15 |
1B009880-FLANGE LEFT More informationQuantity required : 1 |
||||||
|
16 |
1B007994-CONNECTION PLATE More informationQuantity required : 1 |
