Vehicle Exploded View - APRILIA SR 50 R REPLICA H2O 2T E4 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

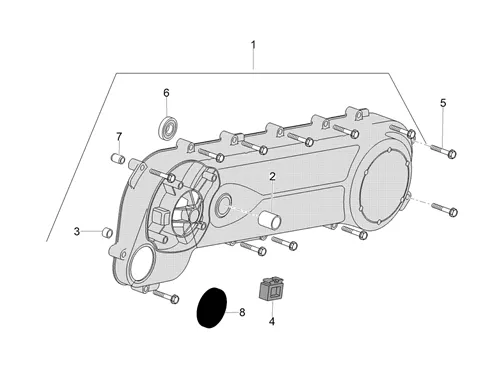

Moteur : 03.220 COUVERCLE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/851/SR_50_R_REPLICA_H2O_2T_E4_2019_(EMEA)_03.220.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/5/6/img/68756.jpg)
1 |
COVER DE TRANSMISSION OEM PIAGGIO 50 2T TYPHOON 2006 > 2010, NRG 2006 >, VESPA PRIMAVERA 2013 >, SPRINT 2014 >/GILERA 50 RUNNER 2000 >/APRILIA 50 SR H2O 2004 >, MOJITO 2004 >-8284535 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/7/img/66167.jpg)
2 |
BUSH SHAFT OF KICK OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER-286209 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
3 |
BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/3/7/img/66537.jpg)
4 |
BUFFER STAND OEM PIAGGIO COMMON A LA RANGE-463872 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
5 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/4/img/68524.jpg)
6 |
BEARING (28X8X9) CASING TRANSMISSION OEM PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82521R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
7 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/6/img/66646.jpg)
8 |
CAP/OBTURATEUR COVER TRANSMISSION OU LEG SHIELD INNER ZIP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 1998 > 2004-483859 More informationQuantity required : 1 |
