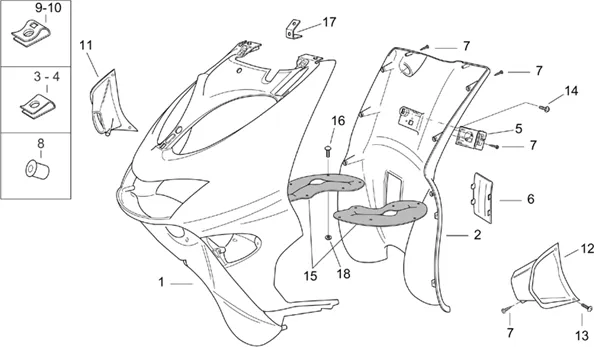

Vehicle Exploded View - APRILIA SR 50 H2O IE-Carb. 2003-2012 (APAC EMEA) APRILIA

Cadre : 28.08 CARROSSERIE AV. III
Carrosserie av. III
Search
AP8268218 - SCUDO ANT.V.GRIGIO PIOMBO

1
P2R reference P2R reference 59927
Maker reference Maker reference AP8268218

AP8268218 - SCUDO ANT.V.GRIGIO PIOMBO

More information

Quantity required : 1

AP8258781 - TABLIER AVANT PEINT NOIR

1
P2R reference P2R reference 59412
Maker reference Maker reference AP8258781

AP8258781 - TABLIER AVANT PEINT NOIR

More information

Quantity required : 1

AP8258843 - TABLIER AV. PEINT ROUGE;

1
P2R reference P2R reference 59470
Maker reference Maker reference AP8258843

AP8258843 - TABLIER AV. PEINT ROUGE;

More information

Quantity required : 1

AP82693565 - TABLIER AV. PEINT ROUGE

1
P2R reference P2R reference 139355
Maker reference Maker reference AP82693565

AP82693565 - TABLIER AV. PEINT ROUGE

More information

Quantity required : 1

AP8268271 - TABLIER AV NOIR AP.

1
P2R reference P2R reference 164010
Maker reference Maker reference AP8268271

AP8268271 - TABLIER AV NOIR AP.

More information

Quantity required : 1

AP8268717 - TABLIER AV. PEINT

1
P2R reference P2R reference 60204
Maker reference Maker reference AP8268717

AP8268717 - TABLIER AV. PEINT

More information

Quantity required : 1

AP82693635 - TABLIER AVANT PEINT NOIR

1
P2R reference P2R reference 139357
Maker reference Maker reference AP82693635

AP82693635 - TABLIER AVANT PEINT NOIR

More information

Quantity required : 1

AP8268203 - SCUDO ANT.V.ROSSO FLUO

1
P2R reference P2R reference 59918
Maker reference Maker reference AP8268203

AP8268203 - SCUDO ANT.V.ROSSO FLUO

More information

Quantity required : 1

AP8258822 - TABLIER AVANT PEINT NOIR;

1
P2R reference P2R reference 59450
Maker reference Maker reference AP8258822

AP8258822 - TABLIER AVANT PEINT NOIR;

More information

Quantity required : 1

AP8268237 - SCUDO ANT.V.GRIGIO GRAPHITE

1
P2R reference P2R reference 59946
Maker reference Maker reference AP8268237

AP8268237 - SCUDO ANT.V.GRIGIO GRAPHITE

More information

Quantity required : 1

AP8268244 - SCUDO ANT.V.BIANCO APRILIA

1
P2R reference P2R reference 59953
Maker reference Maker reference AP8268244

AP8268244-SCUDO ANT. V. BIANCO APRILIA

More information

Quantity required : 1

AP8258933 - TABLIER AV. PEINT ROUGE

1
P2R reference P2R reference 59534
Maker reference Maker reference AP8258933

AP8258933 - TABLIER AV. PEINT ROUGE

More information

Quantity required : 1

AP8258809 - TABLIER AVANT PEINT NOIR

1
P2R reference P2R reference 59437
Maker reference Maker reference AP8258809

AP8258809 - TABLIER AVANT PEINT NOIR

More information

Quantity required : 1

AP8258829 - TABLIER AV. PEINT ROUGE;

1
P2R reference P2R reference 59457
Maker reference Maker reference AP8258829

AP8258829 - TABLIER AV. PEINT ROUGE;

More information

Quantity required : 1

AP8268257 - TABLIER AV. PEINT ROUGE

1
P2R reference P2R reference 59964
Maker reference Maker reference AP8268257

AP8268257-LEG SHIELD AV. PEINT RED

More information

Quantity required : 1

AP8268723 - TABLIER AV. PEINT

1
P2R reference P2R reference 60208
Maker reference Maker reference AP8268723

AP8268723-LEG SHIELD AV. PEINT

More information

Quantity required : 1

AP8258676 - TABLIER AVANT SUP. ARGENT

1
P2R reference P2R reference 59339
Maker reference Maker reference AP8258676

AP8258676 - TABLIER AVANT SUP. ARGENT

More information

Quantity required : 1

AP82693725 - TABLIER AV.

1
P2R reference P2R reference 139358
Maker reference Maker reference AP82693725

AP82693725 - TABLIER AV.

More information

Quantity required : 1

AP8248656 - TAB.INT.NOIR MET.;

2
P2R reference P2R reference 58617
Maker reference Maker reference AP8248656

AP8248656-TAB. INT. BLACK MET *

More information

Quantity required : 1

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763

3
P2R reference P2R reference 72143
Maker reference Maker reference AP8201763

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763

More information

Quantity required : 2

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449

4
P2R reference P2R reference 72157
Maker reference Maker reference AP8202449

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449

More information

Quantity required : 2

ACROCHE CASQUE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8201534

5
P2R reference P2R reference 72135
Maker reference Maker reference AP8201534

ACROCHE CASQUE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8201534

More information

Quantity required : 1

AP8248657 - COUV. DONNEES HOM., NOIR;

6
P2R reference P2R reference 58618
Maker reference Maker reference AP8248657

AP8248657 - COUV. DONNEES HOM., NOIR;

More information

Quantity required : 1

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

7
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

More information

Quantity required : 16

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

8
P2R reference P2R reference 71401
Maker reference Maker reference AP8120531

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

More information

Quantity required : 5

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

9
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 12

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

10
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 3

AP8249713 - PRISE D'AIR D, NOIR MET.;

11
P2R reference P2R reference 58838
Maker reference Maker reference AP8249713

AP8249713-PRISE D'AIR D, BLACK MET *

More information

Quantity required : 1

AP8249715 - PRISE D'AIR GCHE NOIR MET.;

12
P2R reference P2R reference 58839
Maker reference Maker reference AP8249715

AP8249715-PRISE D'AIR GCHE BLACK MET.

More information

Quantity required : 1

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

13
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

More information

Quantity required : 4

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

14
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

14
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

More information

Quantity required : 1

AP8217034 - FERMETURE INF. FOURCHE;

15
P2R reference P2R reference 56609
Maker reference Maker reference AP8217034

AP8217034 - FERMETURE INF. FOURCHE;

More information

Quantity required : 2

AP8220471 - RIVET EN PLASTIQUE;

16
P2R reference P2R reference 56895
Maker reference Maker reference AP8220471

AP8220471-RIVET EN PLASTIQUE

More information

Quantity required : 12

AP8234194 - SUPP. GRILLE DE RADIATEUR;

17
P2R reference P2R reference 58083
Maker reference Maker reference AP8234194

AP8234194-SUPP. GRILLE DE RADIATOR

More information

Quantity required : 1

WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179

18
P2R reference P2R reference 71834
Maker reference Maker reference AP8150179

WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179

More information

Quantity required : 12
