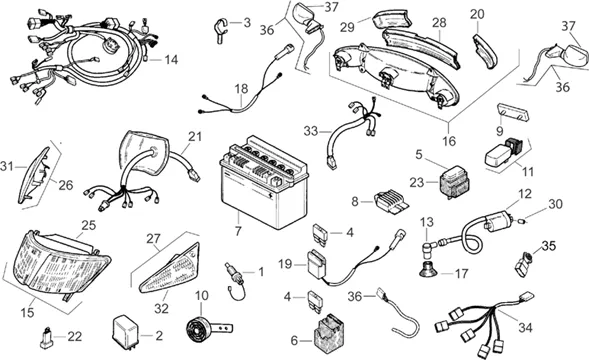

Vehicle Exploded View - APRILIA SR 50 Air 1993-1996 Vertical Cylinder

	P2R reference	67958
	Maker reference	642032

CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032

	P2R reference	71563
	Maker reference	AP8124235

CENTRE CLIGNOTANTE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA ET MOTO 125 CC-AP8124235

	P2R reference	56852
	Maker reference	AP8220269

AP8220269-GUIDE-CABLE

	P2R reference	73394
	Maker reference	CM225607

CM225607-FUSIBLE

	P2R reference	72329
	Maker reference	AP8224462

RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462

	P2R reference	72279
	Maker reference	AP8220342

AP8220342 - CAOUTCHOUC P-FUSIBLES

	P2R reference	65970
	Maker reference	234390

BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390

	P2R reference	56323
	Maker reference	AP8212799

AP8212799 - REGULATEUR DE TENSION;

	P2R reference	45896
	Maker reference	AP8112916

AP8112916-CATADIOPTRE LAMP REAR

	P2R reference	38282
	Maker reference	58237R

AVERTISSEUR OEM APRILIA SR 50 1993 >-58237R

	P2R reference
	Maker reference	AP8206126

Centrale cdi

	P2R reference	55679
	Maker reference	AP8206125

IGNITION COIL - HIGH TENSION "PIAGGIO GENUINE PART" APRILIA 50 RALLY, GULLIVER, SONIC, AMICO -AP8206125

	P2R reference	55670
	Maker reference	AP8206108

AP8206108-MANIFOLD SPARK PLUG

	P2R reference
	Maker reference	AP8212604

FAISCEAU SR 94

	P2R reference	56339
	Maker reference	AP8212846

AP8212846 - FAISCEAU PRINCIPAL

	P2R reference	56270
	Maker reference	AP8212497

AP8212497 - FEU AVANT SR 94/96

	P2R reference
	Maker reference	AP8212672

PHARE AVANT 35+35W

	P2R reference	56281
	Maker reference	AP8212596

AP8212596 - FEU AR SR COMPLET

	P2R reference
	Maker reference	AP8212674

FEU AR SR CPLT ROUGE

	P2R reference	55680
	Maker reference	AP8206128

AP8206128 - CAOUTCHOUC

	P2R reference
	Maker reference	AP8212568

FAISCEAU BATTERIE FUSIBL

	P2R reference	71415
	Maker reference	AP8120754

AP8120754-RUBBER P-FUSIBLES

	P2R reference	56276
	Maker reference	AP8212582

AP8212582 - CABOCHON CLIGNOTANT

	P2R reference
	Maker reference	AP8212501

FAISCEAU PHARE AVANT

	P2R reference
	Maker reference	AP8212605

Cablage feu avant sr

	P2R reference
	Maker reference	AP8212673

FAISCEAU PHARE AVANT

	P2R reference	56254
	Maker reference	AP8212382

DIODE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1998 > 2005, 650 PEGASO, 1000 CAPONORD, FUTURA-AP8212382

	P2R reference	72277
	Maker reference	AP8220283

SANGLE RUBBER DE BLOC OEM PIAGGIO COMMON A LA RANGE-AP8220283

	P2R reference
	Maker reference	AP8212465

Porte-ampoule

	P2R reference
	Maker reference	AP8212498

Clignotant av.dr.

	P2R reference
	Maker reference	AP8212499

Clignotant av.g.

	P2R reference	56274
	Maker reference	AP8212580

CABOCHON LAMP REAR OEM PIAGGIO 50 SR 1993 > 1996-AP8212580

	P2R reference	56275
	Maker reference	AP8212581

AP8212581 - CABOCHON AR DR.

	P2R reference	71430
	Maker reference	AP8121041

SPACER OEM PIAGGIO COMMON A LA RANGE-AP8121041

	P2R reference	56278
	Maker reference	AP8212592

AP8212592 - CABOCHON AV.DR.

	P2R reference	56279
	Maker reference	AP8212593

AP8212593 - CABOCHON AV.G.

	P2R reference
	Maker reference	AP8212557

FAISCEAU FEU ARRIERE

	P2R reference
	Maker reference	AP8212694

FAISCEAU FEU ARRIERE

	P2R reference
	Maker reference	AP8212847

Câblage commandes guidon;

	P2R reference	72189
	Maker reference	AP8212588

DIODE DE SECURITE OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 50-125 RS, TUONO, RX, SX, 1000 RSV-2, FALCO, 650 PEGASO, 400-500 ATLANTIC-AP8212588

	P2R reference	45877
	Maker reference	AP8112687

AP8112687 - INDICATEUR DIRECTION

	P2R reference
	Maker reference	AP8212437

Câblage feu AR

	P2R reference	45881
	Maker reference	AP8112756

AP8112756-VITRE INDICATOR
