Vehicle Exploded View - APRILIA SR 300 Max 2012-2013 APRILIA

Moteur : 01.02 MOTEUR COMPLET

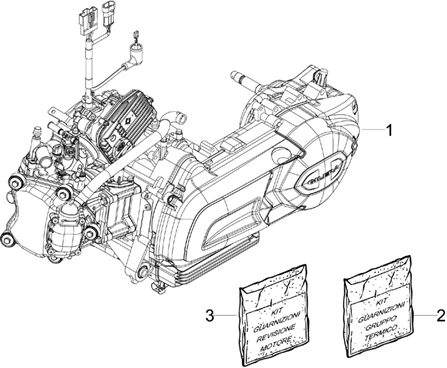

Moteur complet
Search
Moteur

1
P2R reference P2R reference
Maker reference Maker reference CM1583325

Moteur

"PIAGGIO GENUINE ENGINE" GILERA 300 NEXUS 4 stroke/4 valves E3 -CM1583495-

1
P2R reference P2R reference 62801
Maker reference Maker reference CM1583495

ENGINE OEM PIAGGIO GILERA 300 NEXUS 4T/4V E3-CM1583495

More information

Quantity required : 1

SET OF GASKETS HAUT ENGINE OEM PIAGGIO 300 MP3, BEVERLY, CARNABY, YOURBAN, VESPA GTS/GILERA 300 NEXUS/APRILIA 300 ATLANTIC, SPORT-CITY, SR-MAX-4975456

2
P2R reference P2R reference 66931
Maker reference Maker reference 497545

SET OF GASKETS HAUT ENGINE OEM PIAGGIO 300 MP3, BEVERLY, CARNABY, YOURBAN, VESPA GTS/GILERA 300 NEXUS/APRILIA 300 ATLANTIC, SPORT-CITY, SR-MAX-4975456

More information

Quantity required : 1

SET OF GASKETS ENGINE OEM PIAGGIO 250-300 MP3, X7, VESPA GTS, BEVERLY, 250 X8, X9, X-EVO,/GILERA 250-300 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO-LIGHT-497592

3
P2R reference P2R reference 66944
Maker reference Maker reference 497592

SET OF GASKETS ENGINE OEM PIAGGIO 250-300 MP3, X7, VESPA GTS, BEVERLY, 250 X8, X9, X-EVO,/GILERA 250-300 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO-LIGHT-497592

More information

Quantity required : 1
