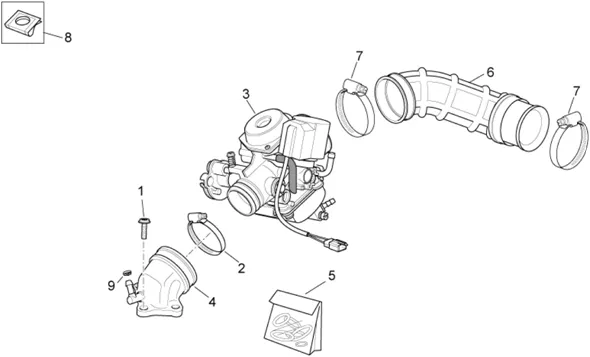

Tavole : 54 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/284/Sport_City_Street_125_4T_4V_E3_2012_54.PNG)
1 |
CM140101-GIGLEUR MIN 35 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/0/img/69200.jpg)
1 |
CAPUCHON/PRISE D'AIR OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-841695 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.jpg)
1 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 3 |
||||||
|
1 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 3 |
||||||
|
2 |
CM129905 - GICLEUR MAXI 98 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/7/img/72897.jpg)
2 |
CLAMP (15MM) SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM002916 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
2 |
CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/5/5/img/73255.jpg)
3 |
SCREW REGLAGE AIR OEM PIAGGIO 125 X9, BEVERLY, CARNABY/GILERA 125 NEXUS, RUNNER-CM149401 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/1/img/69541.jpg)
3 |
CLAMP SERRAGE OEM PIAGGIO COMMON A LA RANGE-847778 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/4/4/img/73144.jpg)
3 |
CARBURETTOR OEM PIAGGIO 125 BEVERLY 2007 > 2010, X7, CARNABY/GILERA 125 NEXUS 2007 > 2008/APRILIA 125 ATLANTIC 2006 > 2012, SPORT-CITY-CM128216 More informationQuantity required : 1 |
||||||
|
4 |
CM140204-POINTEAU CON. More informationQuantity required : 1 |
||||||
|
4 |
826770 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/1/img/72711.jpg)
4 |
FITTING D'ADMISSION OEM PIAGGIO 125 MP3 2007 >, X-EVO 2007 >, VESPA GTS 2007 >/APRILIA 125-250 ATLANTIC 2006 >, SPORT-CITY 2006 >, SCARABEO 2006 >-B016578 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/2/2/img/68422.jpg)
5 |
BRAKE PAD OEM PIAGGIO 125-250-400 MP3 2006 > AV, 50-125 VESPA LX AV, 50-125 VESPA S AV, 50-125 LIBERTY AV, 50 NRG/GILERA 50 RUNNER AR, 500 FUOCO AR (PAIRE)-666574 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/7/7/img/73177.jpg)
5 |
SPRING OF RETURN DE BOISSEAU DE THROTTLE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >-CM140902 More informationQuantity required : 1 |
||||||
|
5 |
826826-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/4/2/img/69242.jpg)
6 |
FLOAT BOWL GASKET FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-842523 More informationQuantity required : 1 |
||||||
|
6 |
842516-KIT RECHAUFFEUR More informationQuantity required : 1 |
||||||
|
6 |
845995-SLEEVE More informationQuantity required : 1 |
||||||
|
7 |
CAPUCHON DE STARTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-828844 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/0/img/72890.jpg)
7 |
HOSE CLAMP HOSE (7X10) OEM PIAGGIO COMMON A LA RANGE-CM002903 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/6/img/66046.jpg)
7 |
CLAMP 58-62. 5 OEM PIAGGIO COMMON A LA RANGE-260918 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/6/8/img/70668.jpg)
8 |
CARBURETTOR TOP CAP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-877764 More informationQuantity required : 1 |
||||||
|
8 |
842521-KIT HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
9 |
826770 - VIS More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/6/9/img/69569.jpg)
9 |
HOSE COOLING (WITH DEVIATION VERS CARBU) OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T-848434 More informationQuantity required : 1 |
||||||
|
9 |
AP8101770-CLAMP CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/4/img/68614.jpg)
10 |
SCREW - FOR CARB COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -826780 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/8/img/73248.jpg)
11 |
POINTEAU OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T ET MAXI SCOOTER 125 CC-CM147102 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/7/2/img/73172.jpg)
12 |
BOISSEAU OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T EN ALUMINIUM WITH MEPLAT FOR CARBURETTOR KEIHIN-CM140301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/4/1/img/69241.jpg)
13 |
CARBURETTOR FLOAT OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC-842522 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/0/9/img/73209.jpg)
14 |
STARTER OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC 2003-CM142913 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/0/5/img/73305.jpg)
15 |
CARBURETTOR FLOAT BOWL WITH PUMP DE REPRISE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >-CM156710 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/8/img/68788.jpg)
16 |
PLATE OF CARBURETTOR OEM 50-125-200 COMMON A LA RANGE 2016 <-2828843 More informationQuantity required : 1 |
||||||
|
17 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 1 |
||||||
|
17 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 1 |
