Vehicle Exploded View - MOTO-GUZZI SPORT 1100 Sport Carburatori 1100 1994-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

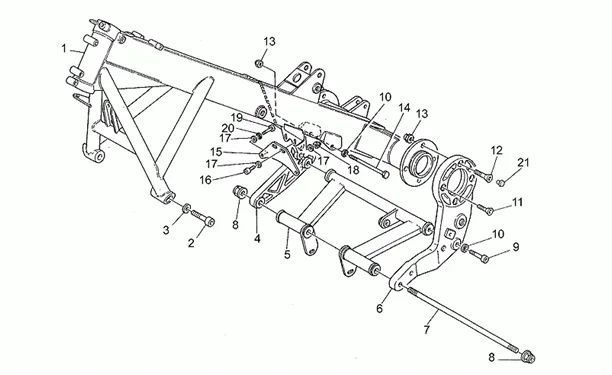

Chassis : 33.20 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/517/Sport_Carburatori_1100_1994-1996_33.20.PNG)
1 |
CADRE AVANT |
||||||
|
2 |
GU98612635-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/6/5/4/img/130654.jpg)
3 |
WASHER SPECIALE (13X18X1, 7) OEM PIAGGIO COMMON A LA RANGE-GU30217900 More informationQuantity required : 2 |
||||||
|
4 |
|
||||||
|
5 |
GU37420105-FRAME BRANCHEMENT DESPLAQUES More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
|
7 |
GU30419601-SCREW WITHOUT HEAD More informationQuantity required : 1 |
||||||
|
8 |
GU92660112 - TIRANT More informationQuantity required : 2 |
||||||
|
9 |
GU98610540-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
10 |
WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220 More informationQuantity required : 2 |
||||||
|
11 |
VIS |
||||||
|
12 |
GU98251040-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/7/img/73547.jpg)
13 |
GU92630110-NUT M10X1, 5 More informationQuantity required : 7 |
||||||
|
14 |
GU98072595 - VIS More informationQuantity required : 1 |
||||||
|
15 |
GU37202805 - PLAQUE FIX.BOITE V. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
16 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-GU98682420 More informationQuantity required : 2 |
||||||
|
17 |
GU95004208 - RONDELLE More informationQuantity required : 6 |
||||||
|
18 |
GU92630508 - ECROU More informationQuantity required : 2 |
||||||
|
19 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
20 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 2 |
||||||
|
21 |
GU30943400 - PETIT COUVERCLE More informationQuantity required : 6 |
