Vehicle Exploded View - MOTO-GUZZI SPORT 1200 Sport 1200 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

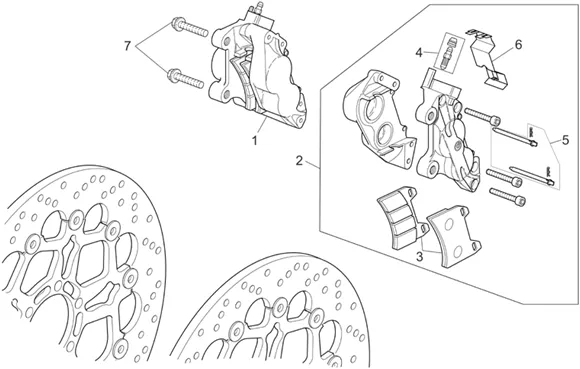

Chassis : 33.33 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/516/Sport_1200_2006-2007_33.33.PNG)
1 |
GU05652330 - MACHOIRE FREIN AV D OR More informationQuantity required : 1 |
||||||
|
2 |
GU05652230-MACHOIRE BRAKE FRONT G OR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/7/img/73417.jpg)
3 |
PLATE BRAKE OEM PIAGGIO MOTO-GUZZI 750 V-7 AV, NEVADA AV, BREVA AV, 850 GRISO AV, BREVA AV, 1100 BREVA AV, CALIFORNIA AV, 1200 GRISO AV, NORGE AV, STELVIO AV, BREVA AV (PAIRE)-GU01654630 More informationQuantity required : 2 |
||||||
|
4 |
GU05659230-PURGE AIR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/2/6/img/101926.jpg)
5 |
PIVOT + SPRING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU01659130 More informationQuantity required : 2 |
||||||
|
6 |
GU01659131-MOLLA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/7/img/71977.jpg)
7 |
SCREW BRAKE CALIPER OEM PIAGGIO APRILIA 1000 RSV, TUONO/MOTO-GUZZI 1200 SPORT, BREVA, NORGE, 1400 CALIFORNIA-AP8152385 More informationQuantity required : 4 |
