Vehicle Exploded View - MOTO-GUZZI SP 1000 SP III 1000 1989-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

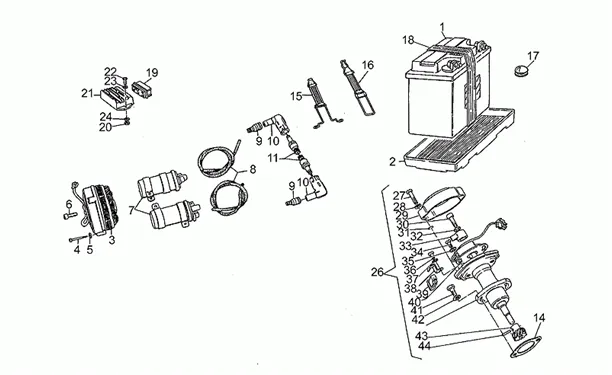

Chassis : 33.01 BATTERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/515/SP_III_1000_1989-1994_33.01.PNG)
2 |
GU28707050 - BOITIER BATTERIE More informationQuantity required : 1 |
||||||
|
3 |
Alternateur SAPRISA |
||||||
|
4 |
Vis |
||||||
|
5 |
GU95021105-WASHER EVENT. More informationQuantity required : 3 |
||||||
|
6 |
GU28712459 - VIS More informationQuantity required : 1 |
||||||
|
7 |
Bobine |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/7/7/img/129377.jpg)
8 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL 2 VALVES MOTO-GUZZI -GU17718350 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
9 |
CAPUCHON/RUBBER HT OEM MOTO GUZZI COMMON A LA RANGE-GU14717600 More informationQuantity required : 4 |
||||||
|
10 |
GU14717400 - PIPE BOUGIE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/5/img/73465.jpg)
11 |
GU30717010 - BOUGIE NGK BP6ES More informationQuantity required : 2 |
||||||
|
14 |
|
||||||
|
15 |
Elastique de fixation |
||||||
|
16 |
GU14705500 - ELASTIQUE DE FIXATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/7/img/132577.jpg)
17 |
CAP RUBBER REGARD OEM MOTO GUZZI COMMON A LA RANGE-GU93180220 More informationQuantity required : 1 |
||||||
|
18 |
Elastique fix.batterie |
||||||
|
19 |
GU28712500-CONNECTEUR More informationQuantity required : 1 |
||||||
|
20 |
GU92660501-NUT EN CAGE More informationQuantity required : 2 |
||||||
|
21 |
Régulateur de tension SAPRISA |
||||||
|
22 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.jpg)
23 |
WASHER PLATE (5. 25X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-GU95100059 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/4/7/img/132747.jpg)
24 |
WASHER ELASTIC (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-GU95129100 More informationQuantity required : 2 |
||||||
|
26 |
|
||||||
|
27 |
VIS |
||||||
|
28 |
WASHER ELASTIC (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-GU95129100 More informationQuantity required : 2 |
||||||
|
29 |
GU29714870-COVER DE DISTRIB More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
30 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98682316 More informationQuantity required : 1 |
||||||
|
31 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
32 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 1 |
||||||
|
33 |
ROTOR ALLUM |
||||||
|
34 |
GU98305012 - VIS More informationQuantity required : 2 |
||||||
|
35 |
GU95000205-WASHER More informationQuantity required : 2 |
||||||
|
36 |
GU98200410-SCREW More informationQuantity required : 1 |
||||||
|
37 |
GU95129080 - RONDELLE More informationQuantity required : 1 |
||||||
|
38 |
|
||||||
|
39 |
PASSAGE DE CABLE |
||||||
|
40 |
GU29722270 - CAPTEUR PHASE/TOURS More informationQuantity required : 1 |
||||||
|
41 |
GU98054425 - VIS M8X25 More informationQuantity required : 2 |
||||||
|
42 |
GU95000208-WASHER More informationQuantity required : 2 |
||||||
|
43 |
ENGRENAGE |
||||||
|
44 |
Goupille |
