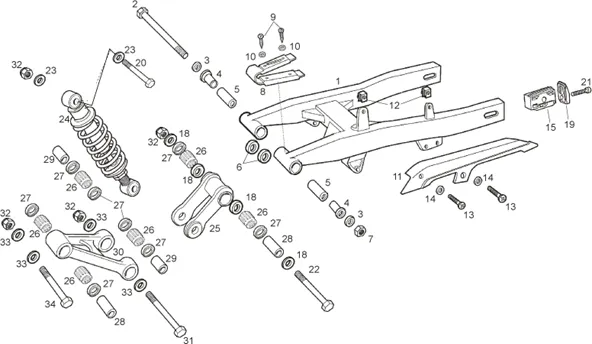

Vehicle Exploded View - GILERA SMT 50 SMT Racing 50 2011

	P2R reference	94876
	Maker reference	B045012
	Replaced by référence 151685

SUSPENSION ARM "PIAGGIO GENUINE PART" GILERA 50 SMT RACING 2011> -B045012

	P2R reference	64484
	Maker reference	00H013042025

WHEEL SPINDLE OU OEM MOPED SWINGARM (12X240) OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 > REAR-00H013042025

	P2R reference	68489
	Maker reference	709037

WASHER PLATE (12. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-709037

	P2R reference	68489
	Maker reference	000031123225

WASHER PLATE (12. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-709037

	P2R reference	63630
	Maker reference	000025032305

SPACER SPINDLE OEM MOPED SWINGARM OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017APRILIA 50 SX, RX 2006 > 2017-00002503230

	P2R reference	64217
	Maker reference	00H00301401

SPACER SPINDLE OEM MOPED SWINGARM OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00301401

	P2R reference	63879
	Maker reference	00D01300192

WASHER PLATE D12 SPINDLE ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX-00D01300192

	P2R reference	63768
	Maker reference	002621200325

NUT AUTOBLOQUANT/NYLSTOP (M12X1. 50) OEM PIAGGIO COMMON A LA RANGE-00262120032

	P2R reference	64623
	Maker reference	00H01804331

CHAIN GUIDE PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01804331

	P2R reference	63687
	Maker reference	000111413005

SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	64557
	Maker reference	00H01508181

COVER CHAIN OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006-00H01508181

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63696
	Maker reference	000120612005

SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	64475
	Maker reference	00H01303171

TENDEUR WHEEL OEM PIAGGIO 50 GILERA 50 SMT RACING 2011 >/DERBI SENDA DRD RACING 2010 > 2013/APRILIA 50-125 RS 2011 >, 50 SX FACTORY, RX FACTORY 2018 >-00H01303171

	P2R reference	63609
	Maker reference	000012131905

00001213190-BUSH DE BUTEE

	P2R reference	64461
	Maker reference	00H01301471

PLATE TENDEUR DE CHAIN OEM PIAGGIO 50-125 APRILIA RS4 2011 >, 50 SX, RX 2018 >/DERBI SENDA 2010 > 2012/GILERA 50 SMT RACING 2011 >-00H01301471

	P2R reference	64230
	Maker reference	00H00303892

SCREW TH (12X58) MOUNTING SHOCK ABSORBER OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT 2006 >-00H00303892

	P2R reference	64462
	Maker reference	00H01301491

SCREW OF TENTION DE CHAIN (8X50) OEM PIAGGIO GILERA 50 SMT RACING 2011 > 2012/DERBI 50 SENDA 2003 > 2013-00H01301491

	P2R reference	63729
	Maker reference	000311201235

SCREW MOUNTING SHOCK ABSORBER OEM PIAGGIO 50 GILERA SMT 2011-2012/DERBI SENDA 2005 > 2010-00031120123

	P2R reference	63633
	Maker reference	000031154225

WASHER PLATE (12X21X1) OEM PIAGGIO COMMON A LA RANGE-00003115422

	P2R reference	70258
	Maker reference	8669370001

8669370001-SHOCK ABSORBER

	P2R reference	64219
	Maker reference	00H00301801

00H00301801-S/ENSEMBLE BIELLE ARTICULATION

	P2R reference	64218
	Maker reference	00H00301701

CAGE A AIGUILLES BIELLETTE SUSPENSION REAR OEM DERBI 50 SENDA 2002 < 2013/GILERA 50 SMT RACING 2011 > 2016/APRILIA 50 SX, RX FACTORY 2018 >-00H00301701

	P2R reference	64222
	Maker reference	00H00301871

GASKET BIELLETTE ARM DE SUSPENSION REAR OEM PIAGGIO GILERA 50 SMT 2006 >/DERBI 50 SENDA 2003 > 2010/APRILIA 50 SX, RX 2006 >-00H00301871

	P2R reference	64220
	Maker reference	00H00301851

SPACER ARTICULATION DE SUSPENSION REAR OEM PIAGGIO GILERA 50 SMT RACING 2011 > 2016/APRILIA 50 SX, RX FACTORY 2018 >-00H00301851

	P2R reference	64221
	Maker reference	00H00301861

SPACER/BUSH OEM MOPED SWINGARM OEM DERBI 50 SENDA DRD 2005 > 2012-00H00301861

	P2R reference	70040
	Maker reference	863989

BIELLE TRIANGULAIRE SUSPENSION REAR OEM DERBI 50 SENDA 2003 < 2012/GILERA 50 SMT 2011-2012-863989

	P2R reference	64215
	Maker reference	00H00300891

SCREW TH (12X110) OEM PIAGGIO COMMON A LA RANGE-00H00300891

	P2R reference	63716
	Maker reference	000231120005

NUT AUTOBLOQUANT/NYLSTOP (M12) OEM PIAGGIO COMMON A LA RANGE-00023112000

	P2R reference	64527
	Maker reference	00H01500421

WASHER PLATE (12. 2X24X1) OEM PIAGGIO COMMON A LA RANGE-00H01500421

	P2R reference	65052
	Maker reference	00H06800471

00H06800471-SCREW MOUNTING BIELLE SHOCK ABSORBER
