Vehicle Exploded View - GILERA SMT 50 e4 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

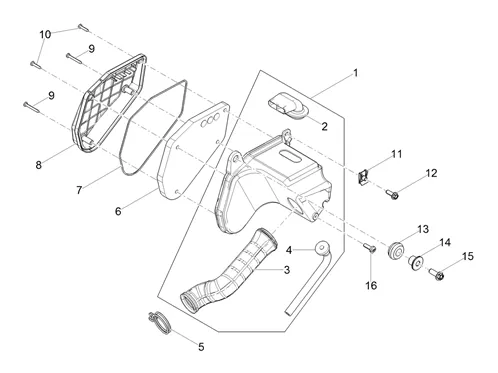

Moteur : 03.05 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/792/SMT_50_e4_2018_(EMEA)_03.05.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/1/7/img/151717.jpg)
1 |
BASE DE HOUSING AIR OEM DERBI 50 SENDA 2012 >/GILERA 50 SMT 2018 >-B043766 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/7/1/img/64771.jpg)
2 |
SLEEVE ASPIRATION DE AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX 2006 >-00H03208491 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/6/7/img/64767.jpg)
3 |
SLEEVE AIR FILTER 50 A BOX OEM PIAGGIO GILERA 50 RCR, SMT 2006 >/APRILIA 50 RX, SX 2006 >-00H03207261 More informationQuantity required : 1 |
||||||
4 |
00H04200721-HOSE ENSEMBLE BOX FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/0/img/64080.jpg)
5 |
CLAMP HOSE DE AIR FILTER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX, RX 2006 >-00G03204272 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/8/8/img/157088.jpg)
6 |
ELEMENT/MOUSSE DE AIR FILTER (PREMIUM) OEM DERBI 50 SENDA 2000 </GILERA 50 SMT 2006 >/APRILIA 50 RX 2006 >, SX 2006 >-B0432990P More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/8/img/71408.jpg)
7 |
GASKET COVER DE AIR FILTER (D3) OEM PIAGGIO COMMON A LA RANGE-AP8120615 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/9/3/9/img/158939.jpg)
8 |
COVER DE AIR FILTER OEM DERBI 50 SENDA 2014 > 2019/APRILIA RX, SX 2018 > 2020/GILERA SMT 2018 >-2B006024 More informationQuantity required : 1 |
||||||
|
8 |
COVER DE AIR FILTER OEM DERBI 50 SENDA 2014 > 2019/APRILIA RX, SX 2018 > 2020/GILERA SMT 2018 >-2B006024 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/8/9/img/63989.jpg)
9 |
SCREW AUTOTARAUDEUSE OEM COMMON A LA RANGE PIAGGIO-00G01501701 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/8/7/img/63987.jpg)
10 |
SCREW PARKER (5X38) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00G01500701 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
11 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
12 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/3/img/63673.jpg)
13 |
RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020 More informationQuantity required : 1 |
||||||
|
14 |
AP8121679-" BUSH EN " " T " " " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
15 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
|
16 |
AP8152169-SCREW More informationQuantity required : 1 |
