Vehicle Exploded View - GILERA SMT 50 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

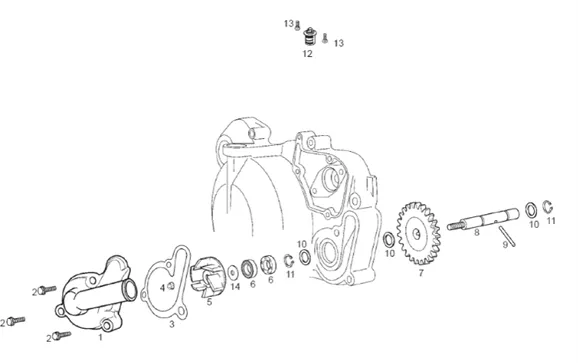

Moteur : 65.24 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/146/SMT_50_2013-2015_65.24.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/6/9/img/73269.jpg)
1 |
COVER PUMP WATER OEM DERBI 50 SENDA 2006 > 2017/GILERA 50 SMT, RCR 2006 > 2017/APRILIA 50 SX, RX 2006 > 2017, RS 2006 > 2010, RS4 2011 > 2017-CM1508024 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
2 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/0/5/img/70705.jpg)
3 |
GASKET COVER OF PUMP A WATER OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX, RS 2006 >-879030 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/5/img/69445.jpg)
4 |
NUT SHAFT OF PUMP A WATER OEM DERBI 50 SENDA/GILERA 50 SMT-847067 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/3/img/69453.jpg)
5 |
TURBINE OF PUMP A WATER OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX, RS 2006 >-847079 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/1/img/69451.jpg)
6 |
OIL SEAL (8X18X5) OF PUMP A WATER OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA 50 RS, SX, RX 2006 >, RS4 2011 >-847077 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/4/img/69454.jpg)
7 |
GEAR WATER PUMP 32 TEETH OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 >-847080 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/2/img/69452.jpg)
8 |
SHAFT OF PUMP A WATER OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 > RS4 2011 >-847078 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/2/img/69482.jpg)
9 |
GOUPILLE SHAFT OF WATER PUMP OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847184 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/1/img/69481.jpg)
10 |
WASHER PLATE (14. 1X18. 2X1) OEM PIAGGIO COMMON A LA RANGE-847183 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/8/img/63808.jpg)
11 |
CLIPS/CIRCLIPS (7. 3) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-006408 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/1/img/66631.jpg)
12 |
CALORSTAT/THERMOSTAT OEM DERBI 50 SENDA 2003 >/PIAGGIO 50 NRG, ZIP LIQUIDE/GILERA 50 RUNNER, DNA, SMT, RCR/APRILIA 50 RS, SR LIQUIDE-483395 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/9/img/65449.jpg)
13 |
SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-018644 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
14 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 0 |
